Gyprock has developed a range of Revit files for the most commonly used Red Book systems to help make specification easier.

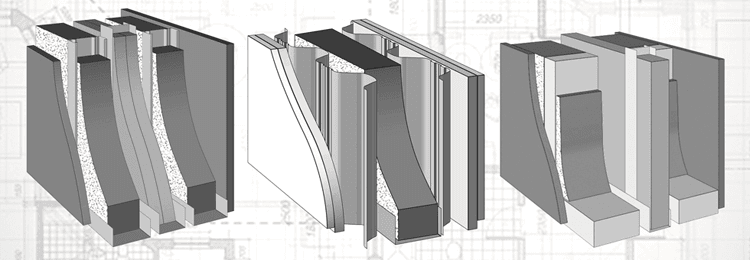

Gyprock Revit files have been developed to help architects, designers and contractors to clearly specify Gyprock wall systems. These include detailed technical drawings to help ensure the specified performance is realised in the finished project.
Revit files are available for the following systems
For additional system options, refer to the Red Book or contact DesignLINK for project support.
CSR1030 Interior Steel Frame Single Stud
CSR1032 Interior Steel Frame Single Stud
CSR1045 Interior Steel Frame Single Stud
CSR1065 Interior Steel Frame Single Stud
CSR1078 Interior Steel Frame Single Stud
CSR1133 Interior Steel Frame Rondo Quiet Stud
CSR1165 Interior Steel Frame Resilient Mount
CSR1230 Interior Steel Frame Staggered Stud
CSR1275 Interior Steel Frame Staggered Stud
CSR1290 Interior Steel Frame Staggered Stud
CSR1340 Interior Steel Frame Double Stud
CSR1360 Interior Steel Frame Double Stud
CSR1390 Interior Steel Frame Double Stud
CSR1430 Interior Steel Frame Single Stud
CSR1480 Interior Steel Frame StrataWall
CSR1485 Interior Steel Frame StrataWall
CSR1510 Interior Steel Frame Party Wall
CSR1565 Interior Steel Frame Party Wall
CSR1615 Interior Steel Frame SecurityWall
CSR1640 Interior Steel Frame SecurityWall
CSR2070 Interior Timber Frame Single Stud
CSR2080 Interior Timber Frame Single Stud
CSR2160 Interior Timber Frame Resilient Mount
CSR2215 Interior Timber Frame Staggered Stud
CSR2355 Interior Timber Frame Double Stud
CSR2368 Interior Timber Frame Double Stud
CSR2385 Interior Timber Frame Double Stud
CSR2405 Interior Timber Frame Party Wall with 25mm Fire Barrier
CSR2410 Interior Timber Frame Party Wall with 25mm Fire Barrier
CSR2455 Interior Timber Frame Party Wall with 25mm Fire Barrier
CSR2465 Interior Timber Frame Party Wall with 41mm Fire Barrier
CSR2482 Interior Timber Frame Party Wall with 41mm Fire Barrier
