Glasroc® X Sheathing Board is a high-performance Class 4 vapour permeable rigid air barrier board, designed for use behind facade cladding systems. It provides up to 6 months of weather protection for a building’s interior prior to cladding.
Product Overview

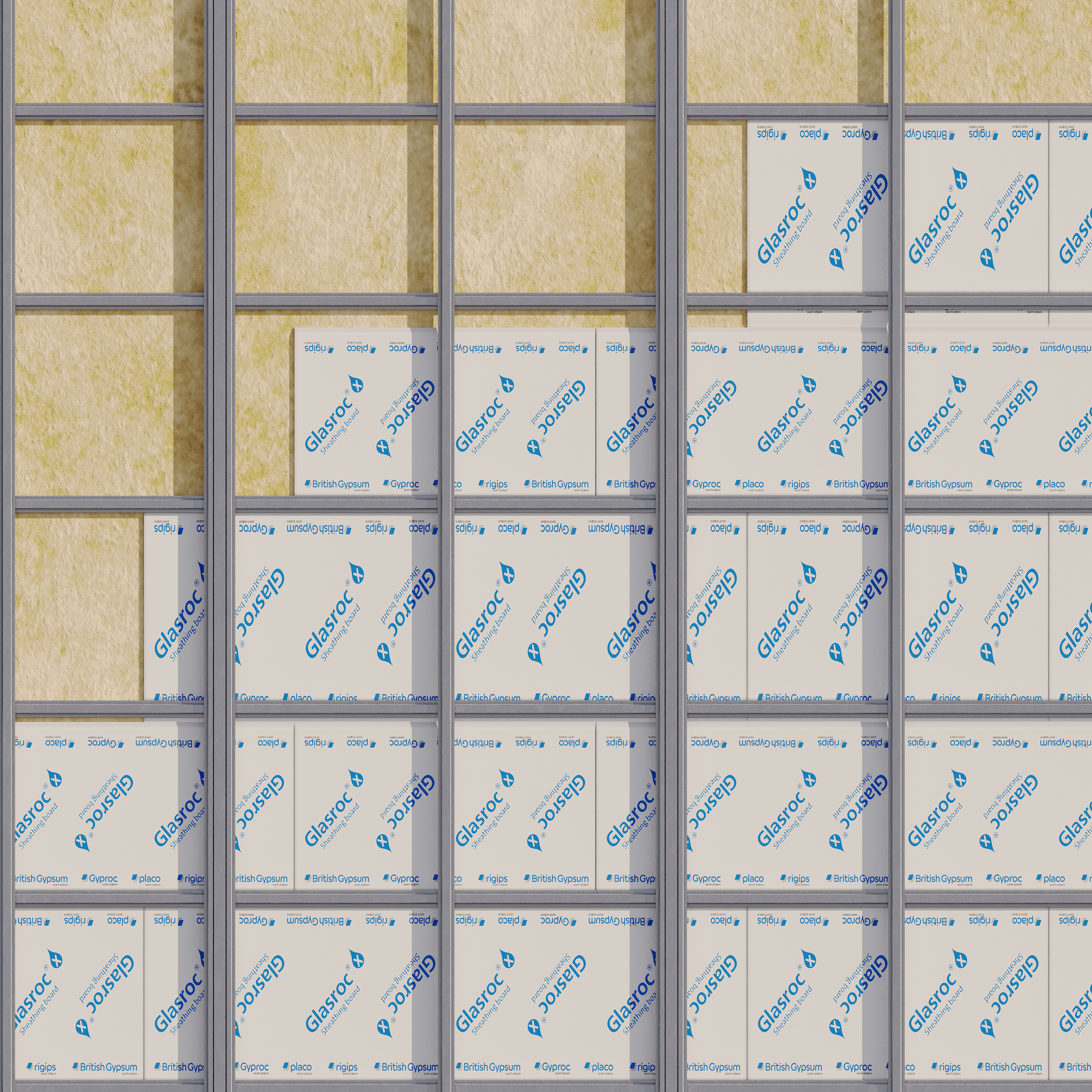

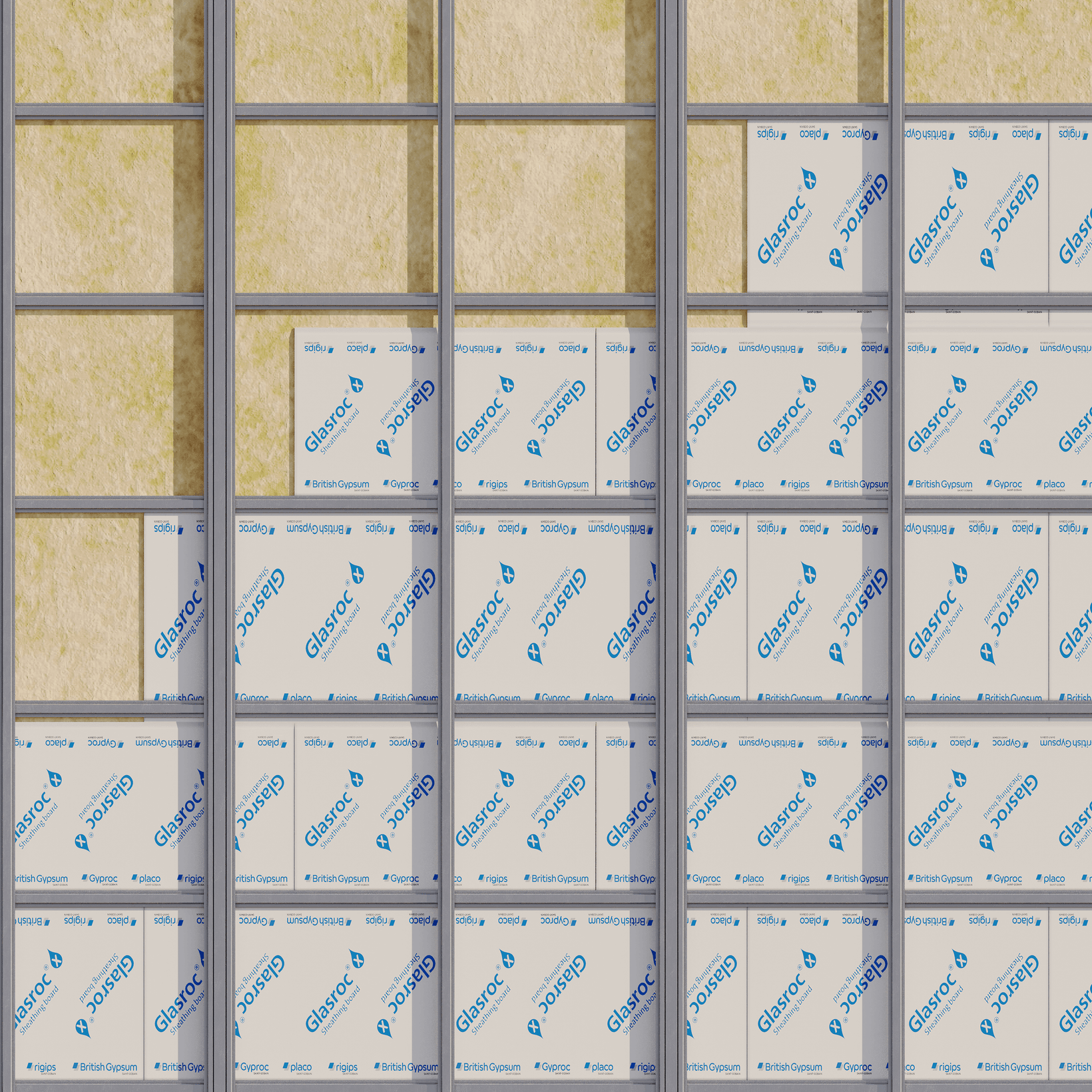

Glasroc X is a 12.5mm thick exterior plasterboard, reinforced with glass mat and UV resistant coating that delivers strength, durability and weather resistance, making it ideal for commercial and multi-res construction.
The Glasroc X system has been tested and assessed to relevant structural, weathertightness, fire, vapour permeability, mould resistance, thermal and acoustic standards, making it the ideal choice for exterior wall applications.
Glasroc X is recommended for use in Climate Zones 2-8. Its Class 4 vapour permeability provides outstanding performance in colder environments (Climate Zones 6, 7 & 8) where the condensation risk is increased.
Engineered to endure high wind environments, Glasroc X withstands wind pressures up ± 6kPa (ULS). The Glasroc X system provides a fire rating of up to FRL 60/60/60 on timber and steel frames⁺ and up to -/90/90 on steel frames⁺.
Glasroc X accelerates construction by enclosing the building and creating a weathertight⁺⁺ environment to allow internal trades to begin sooner. It is easy to handle and install. Boards are simple to score, snap and screw-fix to timber or steel frames. Installation is completed using jointing options like tape or sealant.
The Glasroc X system, comprising of the Glasroc X board, sealing tape, and screws is engineered to deliver optimal performance for your projects. The Glasroc X sealing tape is specifically designed to effectively seal Glasroc X board joints, penetrations, and openings, ensuring weathertight joints. Glasroc X screws, suitable for both steel and timber frames, feature a Class 4 corrosion-resistant coating, offering durable and reliable performance in harsh weather conditions.
.png&w=3840&q=80&dpl=dpl_HkMjFor5QWPnRZUp6xaCxrToueMd)
Typical Applications
- Designed for structural steel and timber frames

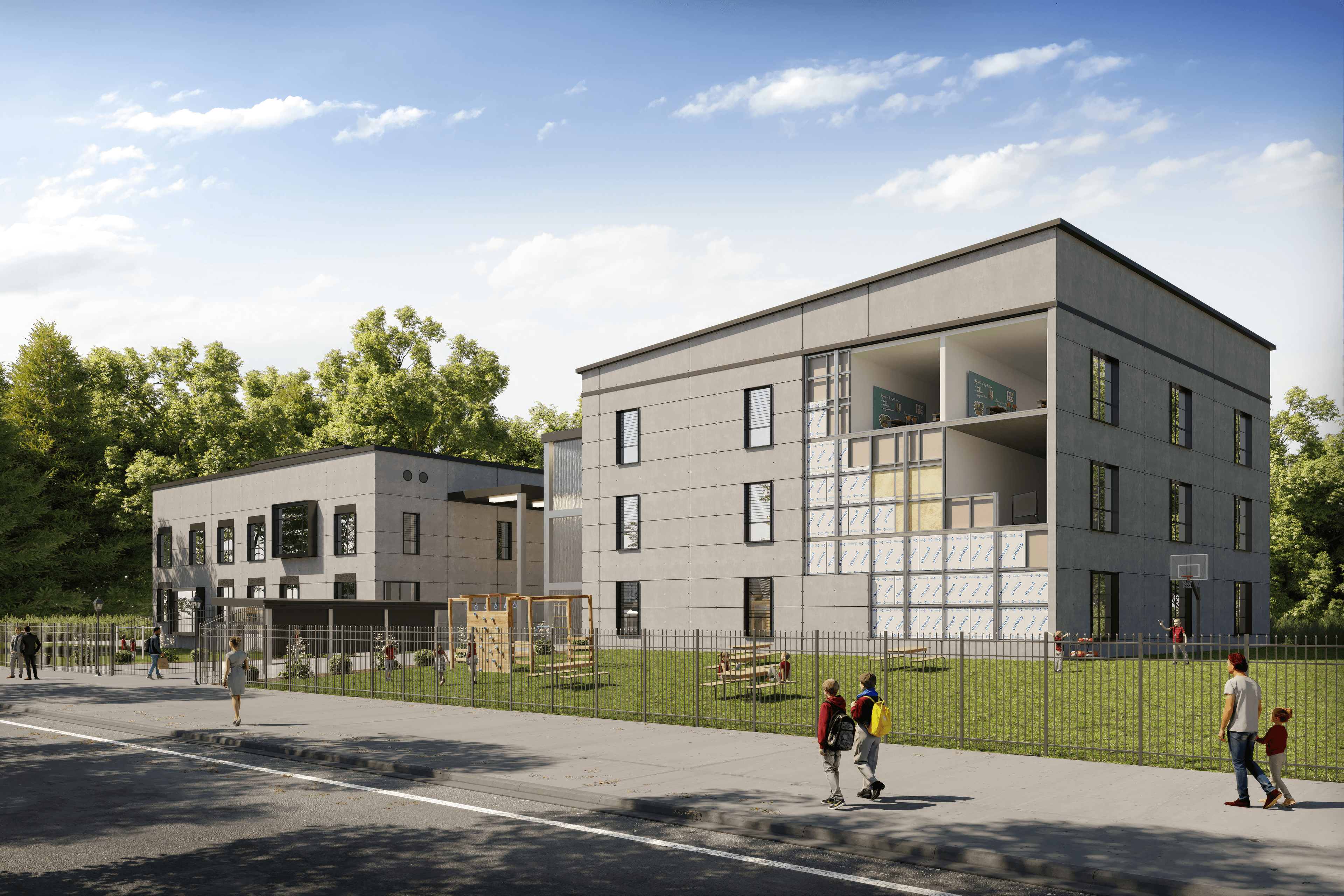

- Suitable for commercial and multi-res construction
- To be used as part of a pressure equalised facade system

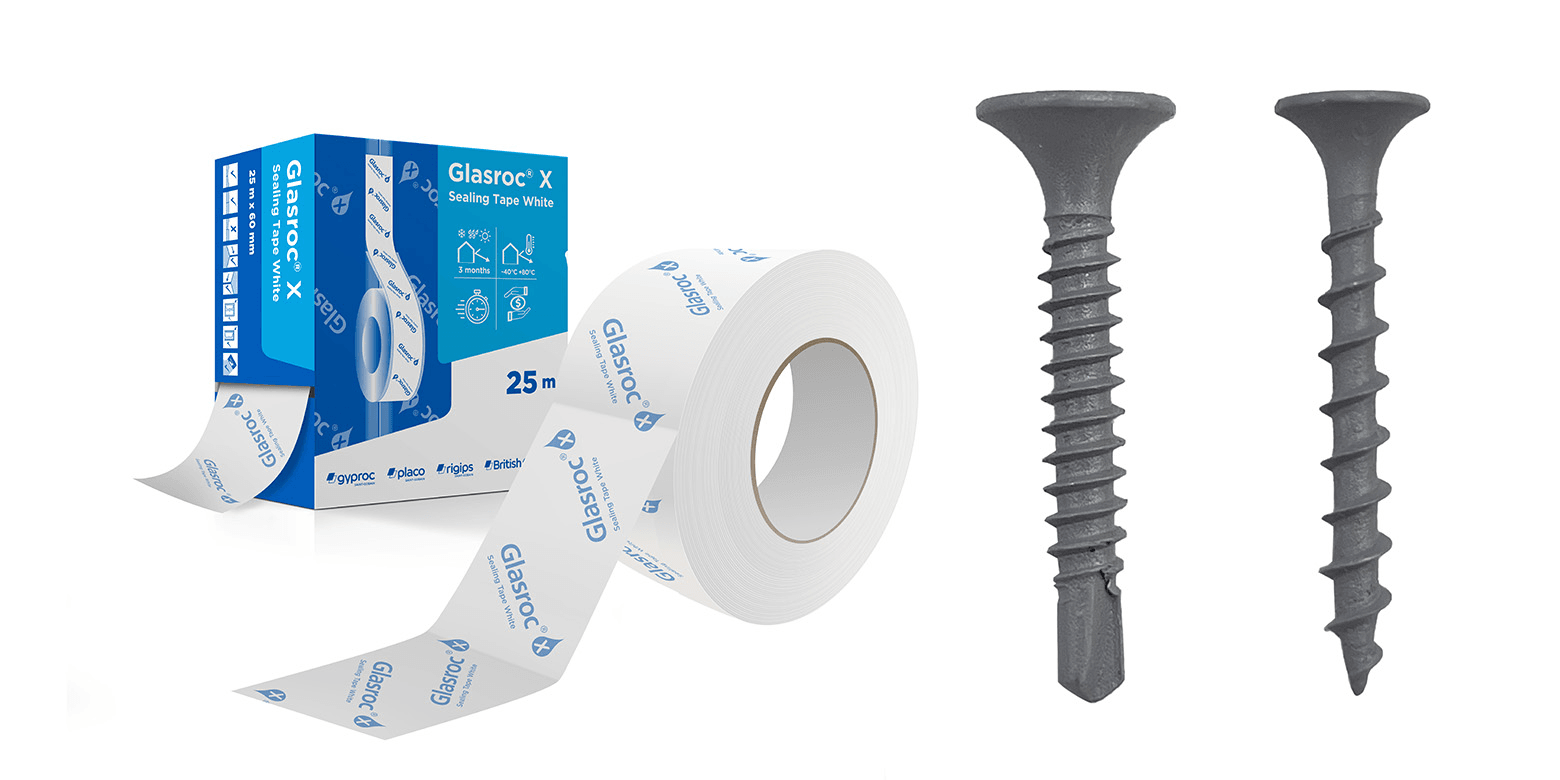

Glasroc X Tape & Screws
The Glasroc X system, comprising the Glasroc X board, sealing tape, and screws, is engineered to deliver optimal performance.
Glasroc® X sealing tape is specially designed to seal Glasroc X board joints, penetrations, and openings, ensuring weathertight joints. The Glasroc X system has been tested to provide up to 6 months weather exposure.
Glasroc X screws, suitable for both steel and timber frames, feature a Class 4 corrosion-resistant coating, ensuring durable and reliable performance in harsh weather conditions.
Key Features
Climate Zones Suitability
Suitable for wet areas
Weather Protection
Licensed by Australian Made Campaign Ltd
Weatherproof System
Exceptional weathertightness performance⁺⁺
Moisture & Mould Resistant
Suitable for exterior applications
High Wind Pressures
Withstands wind pressures up to ± 6kPa (ULS)
Fire-Rated Systems
Up to FRL 60/60/60 for timber & steel frames⁺ Up to FRL -/90/90 for steel frames⁺
High Recycled Content
Contains miniumum of 30% recycled content
⁺ When used with Gyprock Fyrchek as an internal lining.
⁺⁺ When used with Cemintel cavity-fixed cladding, including Territory, Surround, Barestone and ExpressPanel for wind pressures up to ± 2.5kPa (SLS).
Tested Fire Performance
Glasroc X is a high performance gypsum based sheathing board with glass mat reinforcement embedded into its core for improved strength, weather and fire resistance.
The fire rated Glasroc X boards are manufactured with special additives to enhance their fire resistance properties. The additives slow the progress of heat and flame, and when used as part of a CSR fire rated system, provide performance options suitable for many construction types.
Please refer to The Red Book and the Glasroc X Design and Installation Guide for information on fire performance and installation methods for Glasroc X.
Technical Specifications
Gyprock Glasroc X is available in the following sizes:
| Thickness | 12.5mm |
| Widths | 1200mm |
| Lengths | 3000mm |
| Edge Profiles | Recessed Edge for regular jointing. |
For the latest product availability in your area and to place an order, contact your nearest supplier.
Glasroc X is manufactured for CSR Gyprock by worldwide plasterboard specialist Saint-Gobain.
| Nominal Thickness | 12.5mm ± 0.4mm |
| Nominal Widths | 1200mm -3mm + 0 |
| Nominal Lengths | 2000 -5mm + 0 |
| Squareness | +-6mm |
| Nominal Board Weight* | 10.9kg/m2 |
| Thermal Resistance | 0.05 m2K/W |
| Combustibility◊ | Plasterboard may be used wherever a non-combustible material is required. |
* Subject to reasonable manufacturing variance
Transportation and manual handling: Refer to the Gypsum Board Manufacturers of Australia (GBMA) website for recommended OH&S practices.
Storage: Protect plasterboard and cornice from weather and moisture. Avoid products sagging by storing horizontally, supported on a level platform or full-width support members spaced at max. 600mm centres.
Safety Data Sheets are important documents in the construction industry and assist in the continuing focus on occupational health and safety on and off sites.
Installation Instructions
Install to manufacturer's recommendations as outlined in the relevant Installation Guide.
