To ensure a seamless look Gyptone Access Panels blend almost imperceptibly into the ceiling with a perforation pattern that matches each of the Gyptone boards.
Product Overview

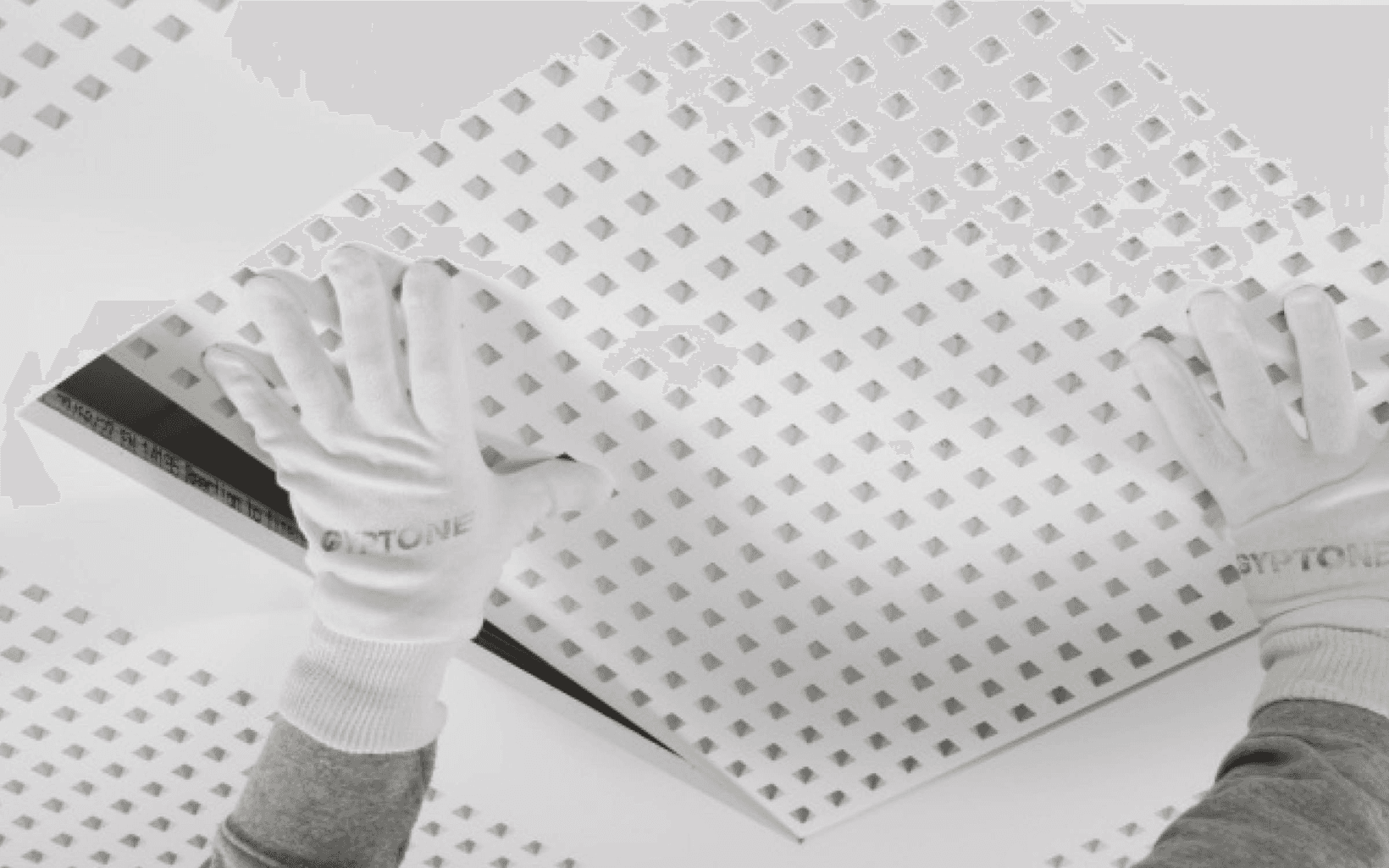

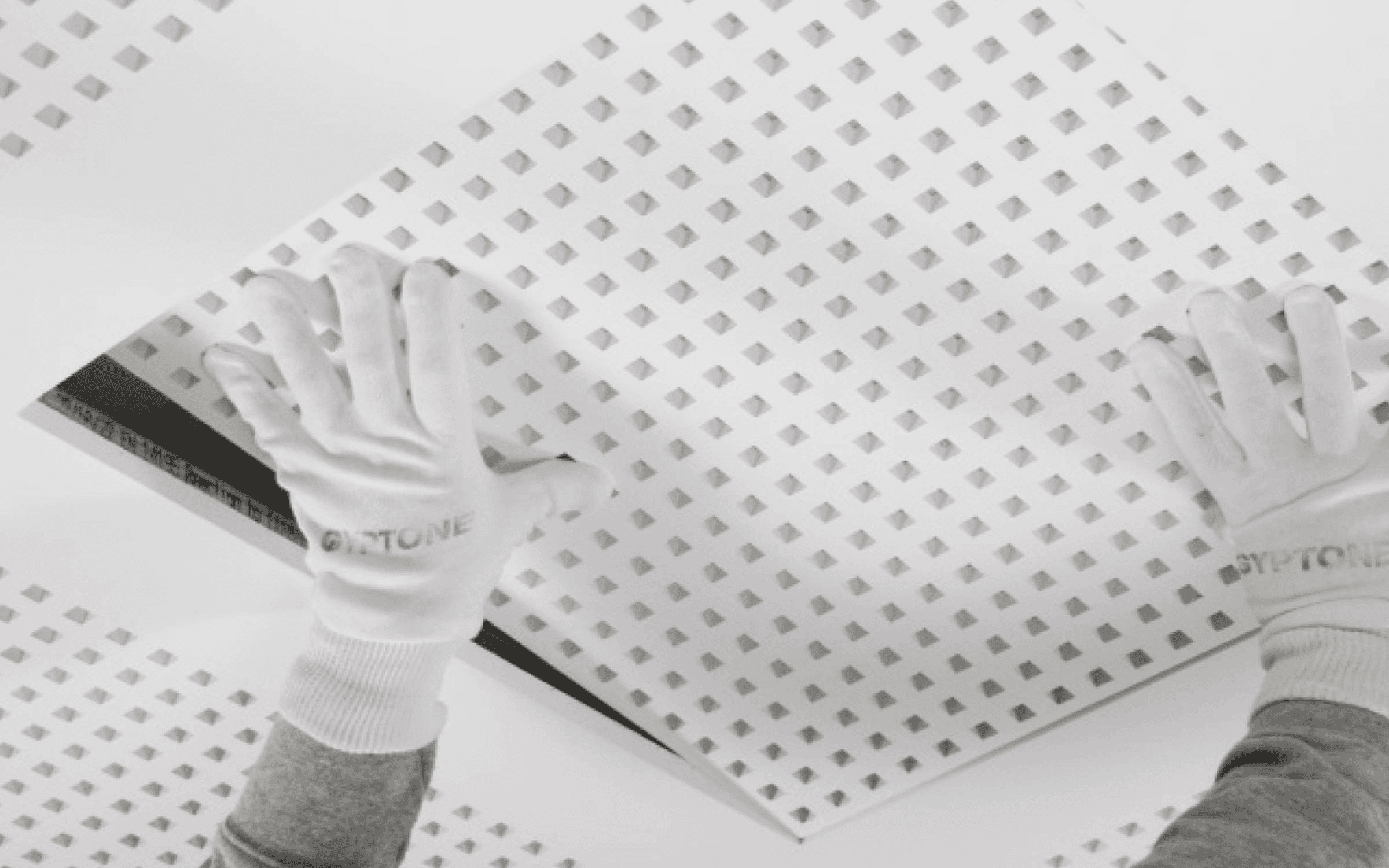

Gyptone Access panels are designed to allow easy access for inspection and maintenance of services located above the Gyptone perforated plasterboard acoustic ceilings. Available in each of the four Gyptone board patterns,they consist of a plasterboard frame that is easily set into the ceiling and a 510mm x 510mm hatch piece with a matching perforation pattern that fits neatly into the frame to create a seamless look.
Typical Applications

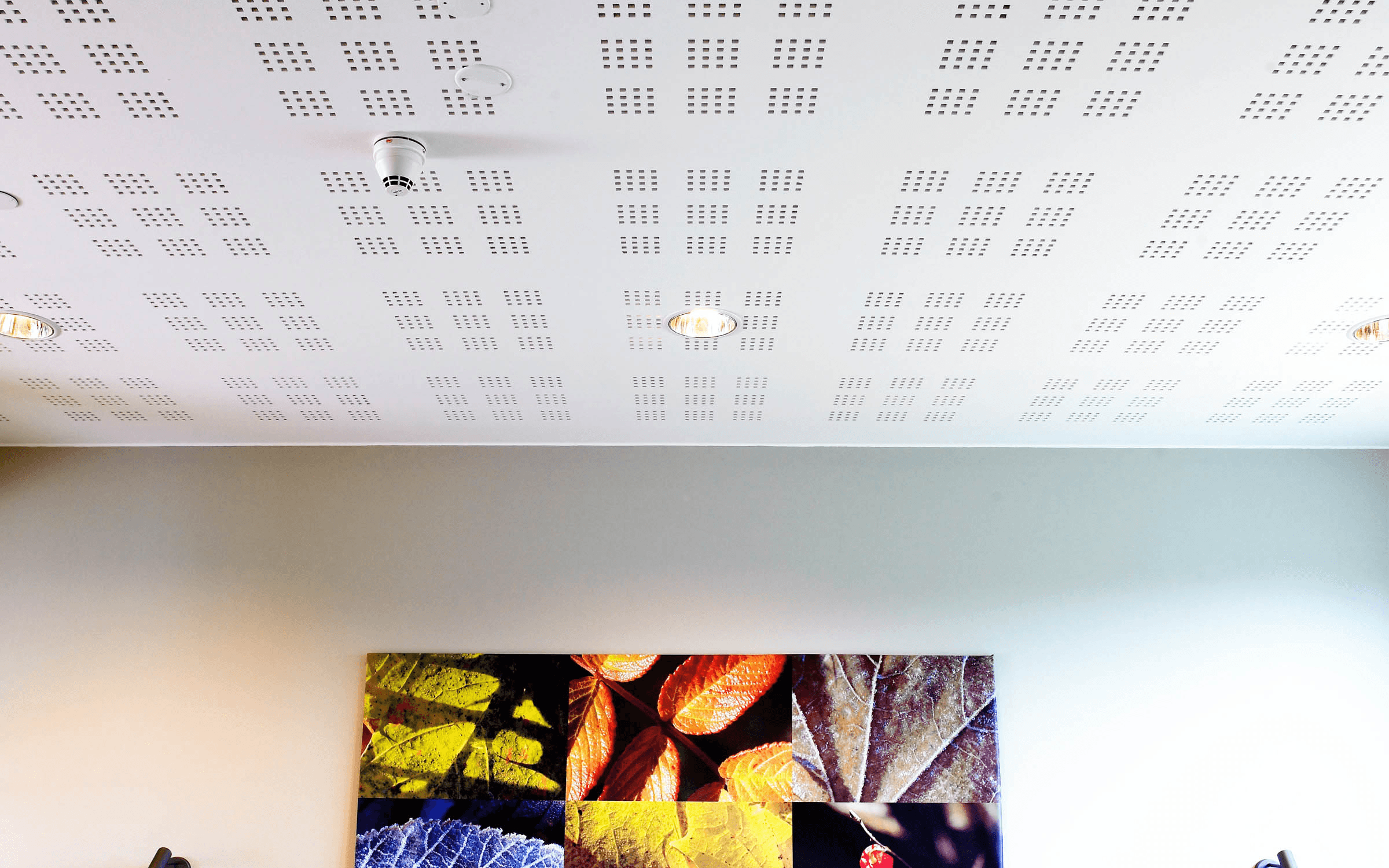

Gyptone Access Panels are typically used in Gyptone acoustic ceilings in offices, theatres, restaurants, shopping centres and hotel foyers.
Key Features
Acoustics
Absorbs sound into the ceiling and walls to prevent reverberation
Aesthetics
Acoustic performance with design freedom
Acoustic Properties
High acoustic rating when used in a system
Technical Specifications

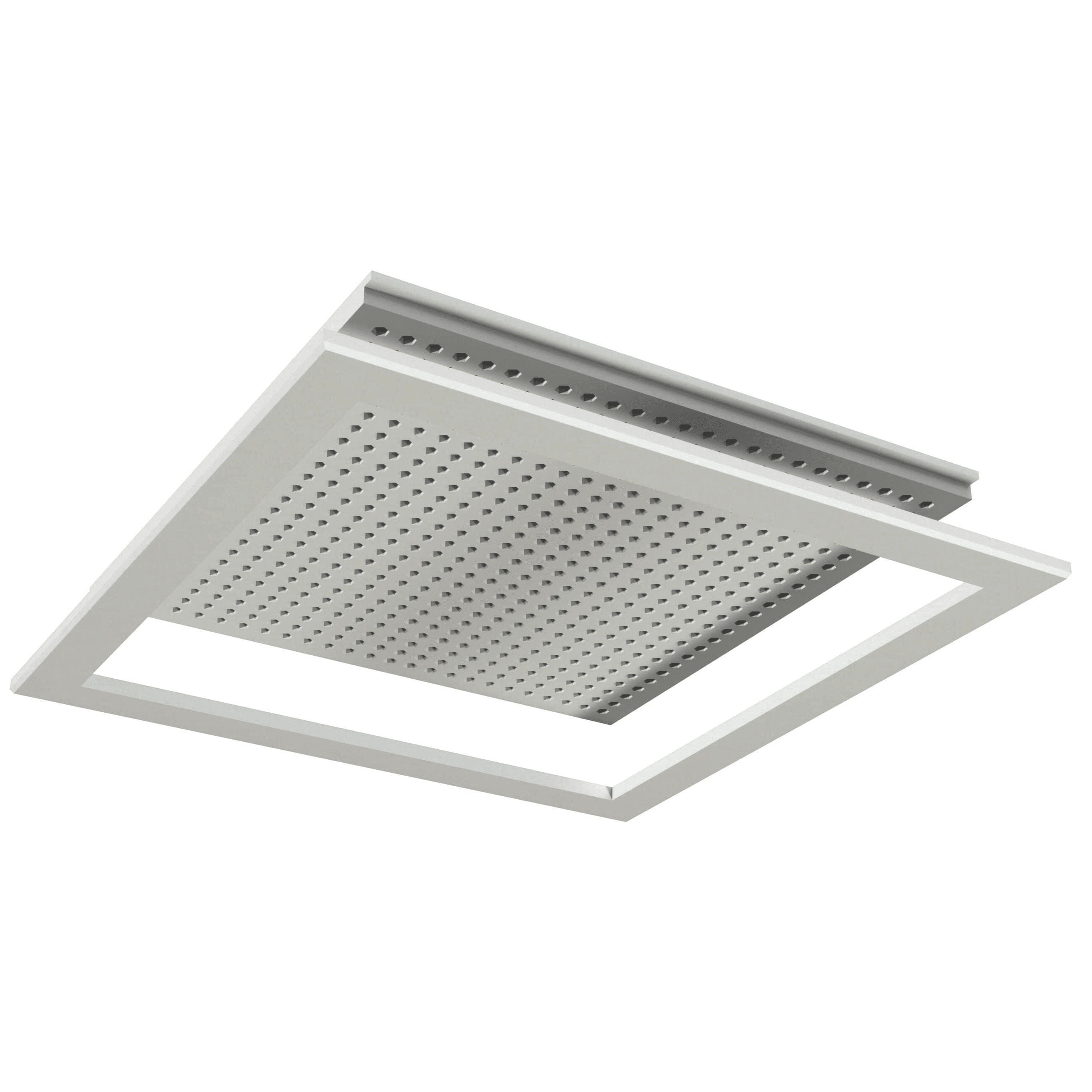

Gyptone Access Panels are 600mm x 600mm including the frame with a 510mm x 510mm x 12.5mm hatch piece/opening measurement. The frame weight is 0.9kg and the hatch is approximately 3.6kg.
Stockholdings may vary. For product availability and to place an order, contact your nearest supplier.
Gyptone Access Panels are manufactured for CSR Gyprock by worldwide plasterboard specialist Saint-Gobain.
Transportation and manual handling: Refer to the Gypsum Board Manufacturers of Australia (GBMA) website for recommended OH&S practices.
Safety Data Sheets are important documents in the construction industry and assist in the continuing focus on occupational health and safety on and off sites.
Installation Instructions
AS/NZS2589: Gypsum linings – Application and Finishing outlines the procedures for the installation and finishing of Gyprock Perforated Plasterboard in conjunction with additional details contained in Gyprock Technical Literature.
Performance Guaranteed
Through the International Alliance program, Gyprock seeks to develop exclusive relationships with leading manufacturers throughout the world to deliver the best technologies and products to the Australian construction industry.
