Gyprock Aquachek 10mm offers the same moisture resistance and tile weight capacity, now in a lighter board that is easier to work with.
Product Overview
The 10mm wall and ceiling plasterboard is designed as the perfect lining for wet areas in residential applications.

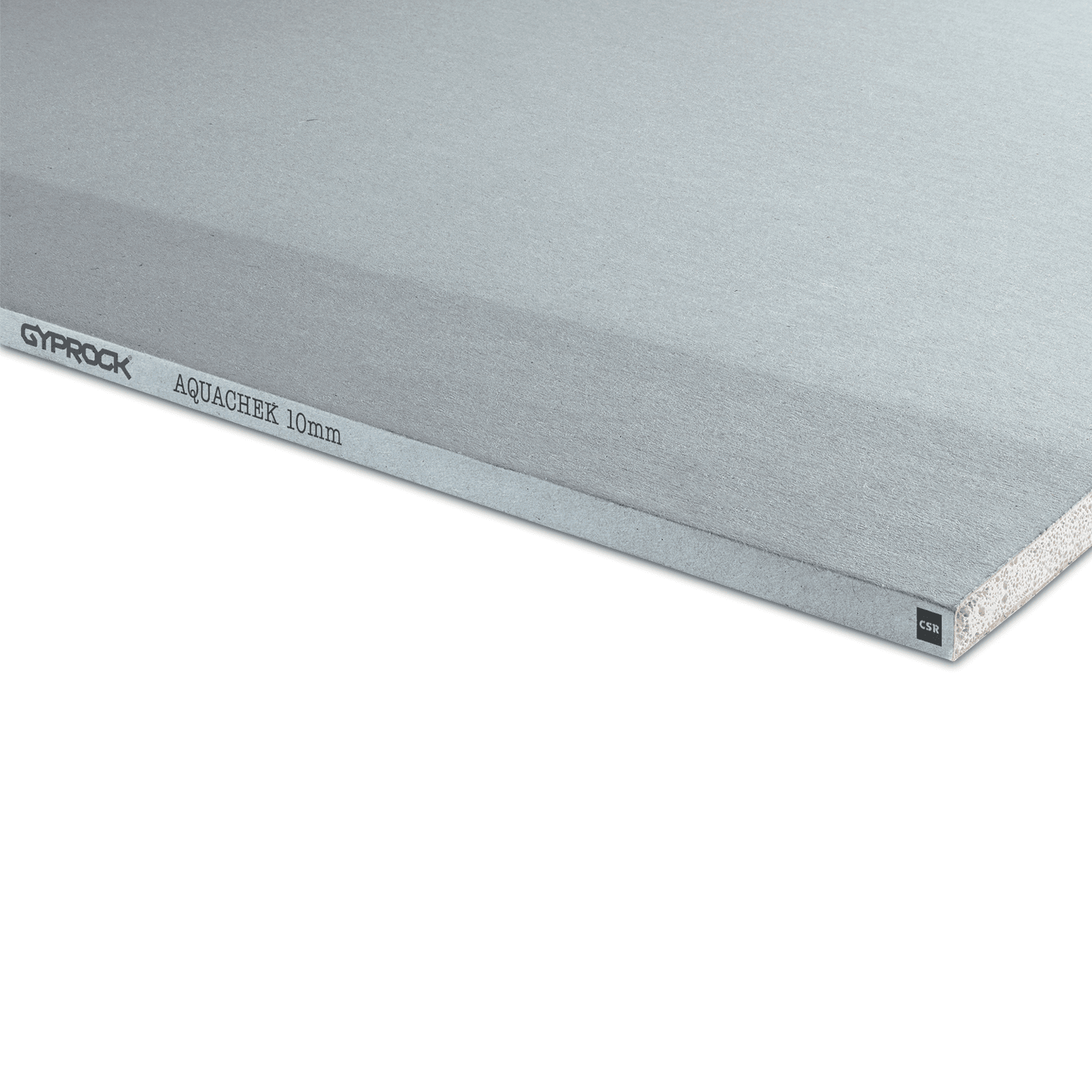

The core, face and back of Gyprock Aquachek 10mm are treated to make it resistant to moisture and humidity without compromising integrity. It is specifically designed for use as a wall and ceiling lining in wet areas of residential buildings. It can be easily identified by its blue coloured face paper.
Gyprock Aquachek 10mm is manufactured to meet or exceed the requirements of water-resistant grade gypsum plasterboard as per AS/NZ 2588 Gypsum Plasterboard and satisfies the requirements of the Building Code of Australia for wet area wall linings in residential buildings when installed according to Gyprock installation guides. Refer to Australian Standard AS3740 - Waterproofing of Wet Areas in Residential Buildings for additional requirements. Installation information for wet area solutions can be found in the Red Book 2: Residential Installation Guide.
Typical Applications

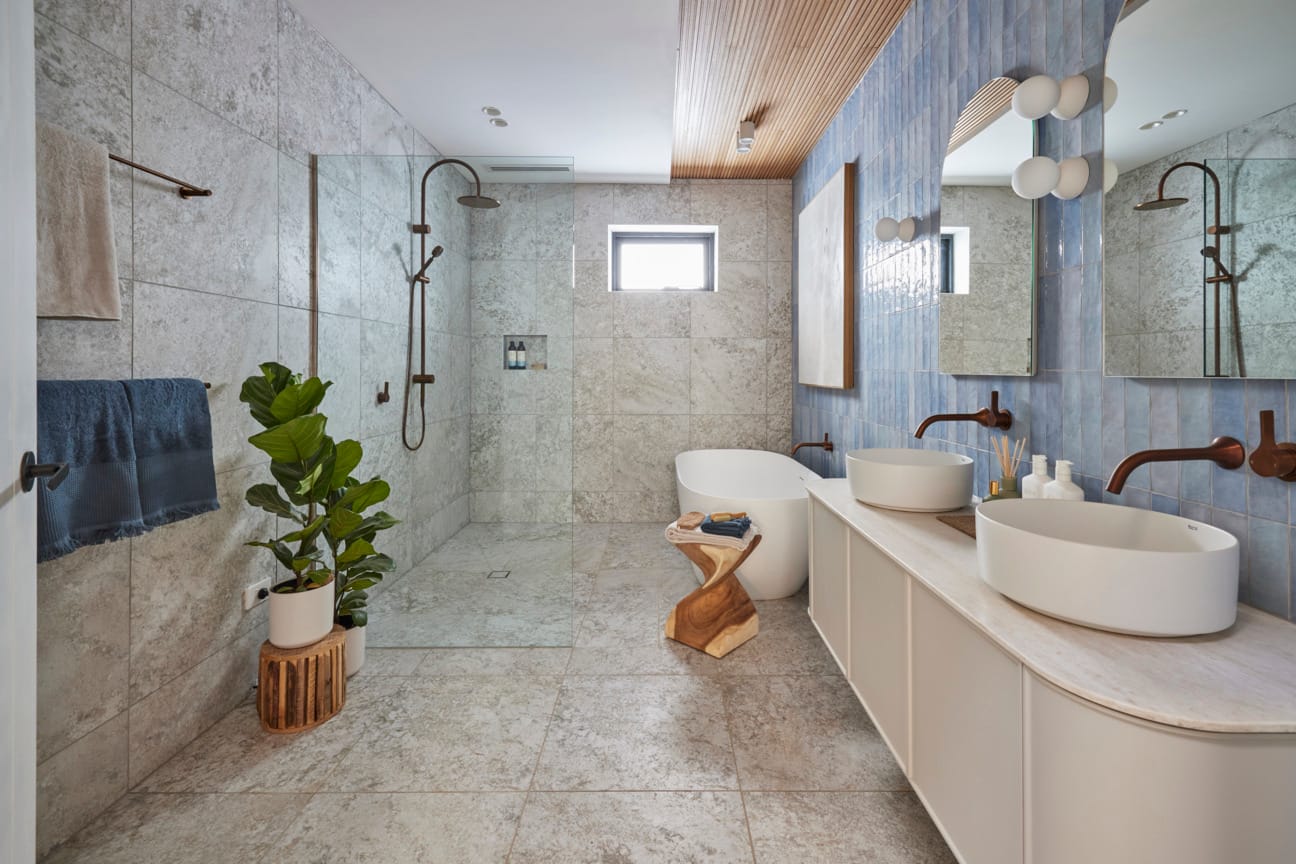

In residential projects Gyprock Aquachek 10mm is ideal for use in bathrooms, laundries, ensuites, and toilets.
Because Aquachek 10mm is not subject to moisture movement and has extremely low water absorption characteristics, it provides an excellent, stable substrate for ceramic tiles.
Key Features
Australian Made
Licensed by Australian Made Campaign Ltd
Moisture Resistant
Suitable for wet areas
Lighter
Easy to lift and flex for better sheet manoeuvrability
Improved Score and Snap
For crisp edges and cleaner cuts
Versatile
Suitable for walls and ceilings
Tested Moisture Performance
Gyprock wet area plasterboard products are manufactured with special additives to enhance the moisture resistance of their core. The additives also permeates the face and back paper of the board, delivering superior performance in wet area and high humidity applications.
Water resistance
Water resistance is tested by submerging a sample of plasterboard in a body of water for two hours.
Surface water resistance
Surface water resistance testing sees the plasterboard sample weighed pre-and-post surface exposure to water.
Technical Specifications
Gyprock Aquachek 10mm is available in the following sizes:
| Thickness | 10mm |
|---|---|
| Widths | 1200mm 1350mm |
| Lengths | 2400mm 2700mm 3000mm 4200mm 4800mm 6000mm |
| Edge Profiles | Recessed Edge for regular jointing |
Stockholdings of specific sizes may vary in different regions. Click HERE for a list of stocked sizes in your state
For the latest product availability in your area and to place an order, contact your nearest supplier.
Gyprock Aquachek is manufactured by CSR Gyprock in Australia to stringent product specifications.
| Nominal Thickness | 10mm ± 0.5mm |
|---|---|
| Nominal Widths | 1200 and 1350mm ± 3mm |
| Nominal Lengths | From 2400 to 6000mm ± 5mm, typically in 300mm increments |
| Squareness | Cut ends ± 3mm in the width of the board |
| Nominal Board Weight* | 7.1kg/m2 |
|---|---|
| Thermal Resistance | 0.05 m2K/W |
| Fire Hazard Properties∆ | Group No = 1 SMOGRARC <100 m2/s2 |
| Combustibility◊ | Plasterboard may be used wherever a non-combustible material is required. |
| Total Recycled Content | 4.9% |
*Subject to reasonable manufacturing variance.
∆ In accordance with AS ISO 9705 and AS 5637.1
◊ In accordance with NCC2022 Vol 1 Clause C2D10(6)(a) and NCC2019 Amdt1 Vol Clause C1.9(e)(i).
Transportation and manual handling: Refer to the Gypsum Board Manufacturers of Australia (GBMA) website for recommended OH&S practices.
Storage: Protect plasterboard and cornice from weather and moisture. Avoid products sagging by storing horizontally, supported on a level platform or full-width support members spaced at max. 600mm centres.
Safety Data Sheets are important documents in the construction industry and assist in the continuing focus on occupational health and safety on and off sites.
Performance Guaranteed
Licensed by Australian Made Campaign Limited to use the Australian Made Logo.
Gyprock plasterboard products are manufactured for life with all CSR products designed to achieve optimal performance when part of a CSR integrated system.
Verified by an independent conformity assessment body to meet the environmental, health and social/ethical criteria of the GECA Panel Boards standard.
