The unique, seamless finish of Rigitone is made possible by the use of a specialised primer, filler and installation tools.
Product Overview
Unlike the traditional three coat plasterboard jointing systems, Rigitone boards are joined by caulking a specialised compound into a gap between the sheets. The filling method is made possible by the unique Rigitone Filler Accessory Kit, combined with Rigitone Primer and the Rigitone Filler compound.
Filling and finishing of Rigitone Perforated Plasterboard may also be achieved by using the dry-mix Gyprock Perforated Filler and Dry-Mix Filler Application Kit.
Typical Applications
Rigitone perforated plasterboard is typically used as a high-performance plasterboard for ceilings in commercial constructions where a high level of acoustic performance is required. This includes applications such as theatres, restaurants, shopping centres and hotel foyers. Whilst perforated plasterboard in predominantly installed in ceilings, it is suitable for use in walls.
Key Features
Easy Installation
All you need to get the job done
Primer, Filler, Spacers

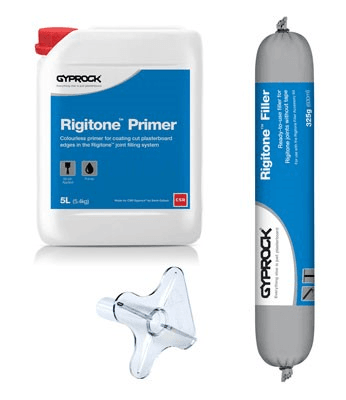

Rigitone Primer is a colourless primer for coating cut plasterboard edges in the Rigitone joint filling system. While all four edges of Rigitone boards are supplied pre-primed, Rigitone Primer is diluted ⅔ to ⅓ water and applied by brush to prepare edges that are cut during installation.
Rigitone Filler is used without tape to create a seamless joint between the edges of Rigitone boards. It is applied using the Barrel Gun and proprietary nozzles to ensure the perfect finish.

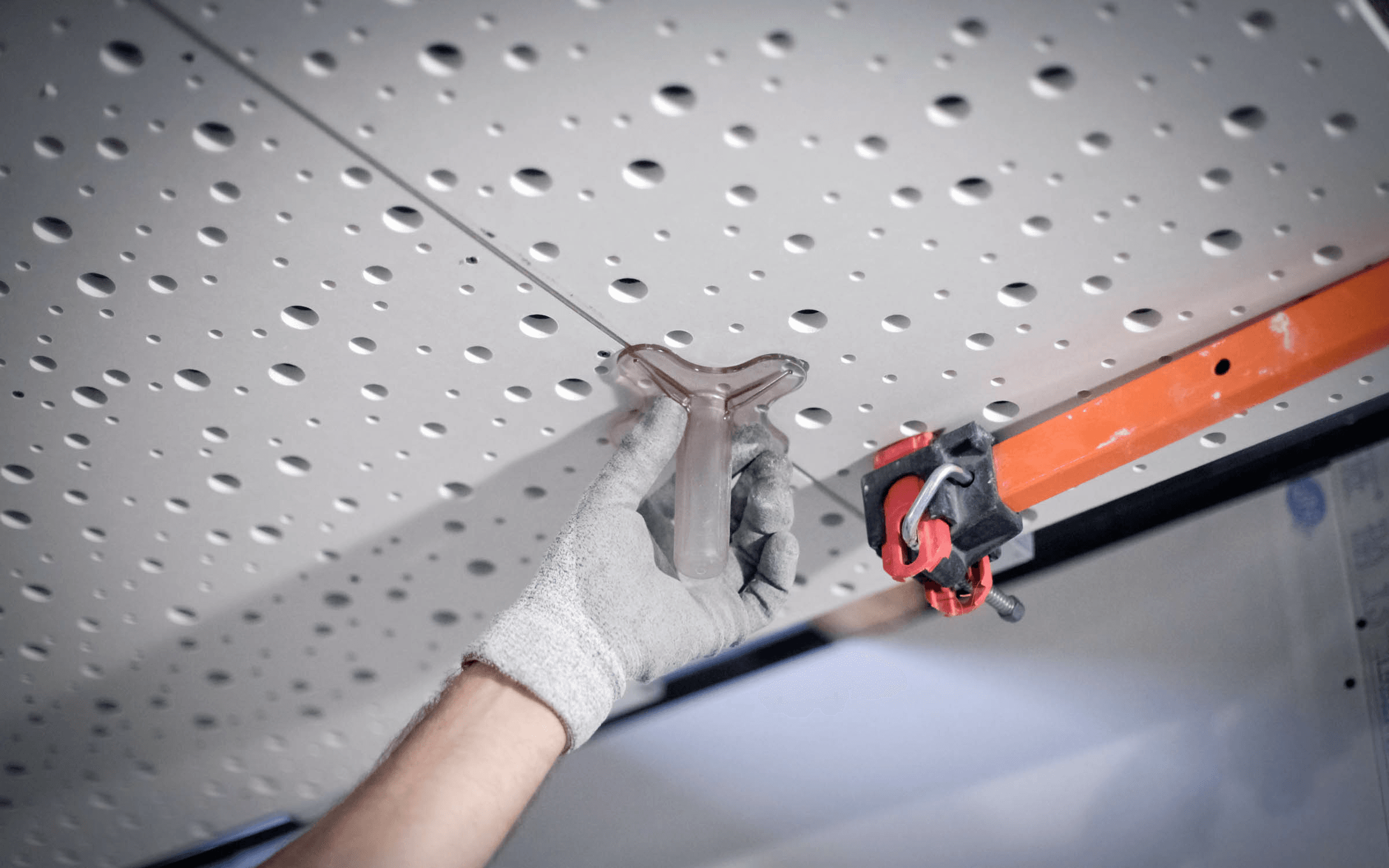

Rigitone Pattern Spacers are designed to ensure boards are fixed with the exact gap required for jointing. A specific Pattern Spacer is available for each of the four Rigitone board pattern layouts
Technical Specifications

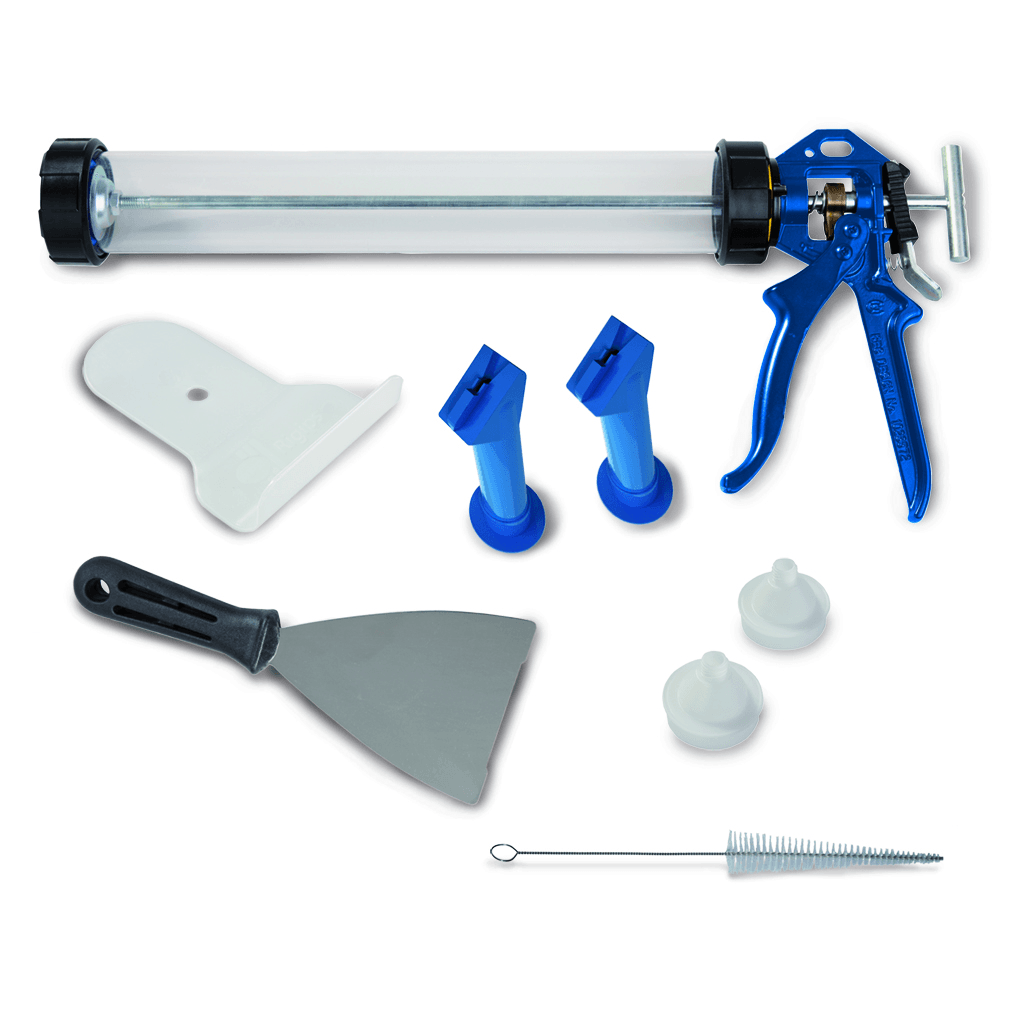

Rigitone Filler Accessory Kit
| Contents | 1 x Rigitone barrel gun 2 x Rigitone nozzle connectors 2 x Rigitone nozzles 1 x Rigitone notched joint knife 1 x Rigitone screw head template 1 x Rigitone cleaning brush |
Rigitone Dry-Mix Filler Application Kit
| Contents | 1 x Rigitone fix pistol 1 x Rigitone fix cartridge tube 2 x Rigitone fix joint nozzles 1 x Rigitone scraper 1 x Rigitone fix cap 1 x Rigitone fix piston 1 x Rigitone nozzle cleaning brush 1 x Rigitone screw head template |
Rigitone Primer
| Size | 5L (5.5kg) jerry can |
| Coverage | 40-70m2/L |
Rigitone Filler
| Size | 600mL (325g) sausage |
| Coverage | 600mL/7.5m2 |
Gyprock Perforated Filler
| Size | 10kg non-resealable bag |
| Coverage | 10kg/30m2 |
Rigitone Pattern Spacers
| Quantity | 2 per pack |
Stockholdings may vary. For product availability and to place an order, contact your nearest supplier.
Rigitone Accessories are manufactured for CSR Gyprock in Australia by worldwide plasterboard specialist Saint-Gobain.
Transportation and manual handling: Refer to the Gypsum Board Manufacturers of Australia (GBMA) website for recommended OH&S practices.
Safety Data Sheets are important documents in the construction industry and assist in the continuing focus on occupational health and safety on and off sites.
Installation Instructions
AS/NZS2589: Gypsum linings – Application and Finishing outlines the procedures for the installation and finishing of Gyprock Perforated Plasterboard in conjunction with additional details contained in Gyprock Technical Literature.
Performance Guaranteed
Through the International Alliance program, Gyprock seeks to develop exclusive relationships with leading manufacturers throughout the world to deliver the best technologies and products to the Australian construction industry.
