Complete by name and Complete by nature: for commercial environments, this ultimate plasterboard is specifically engineered to meet the highest standards across a broad range of performance requirements.
Product Overview
EC08 Complete is manufactured with a dense, fibre-reinforced core and is specially formulated to provide superior performance for mould, impact, fire, acoustic and moisture resistance making it an excellent choice for most commercial applications.
All boards in the EC08 range contain high levels of recycled content and are manufactured to AS/NZS 2588 – Gypsum Plasterboard. Their low VOC emissions make them an ideal choice for applications where maintaining high levels of indoor air quality is important.

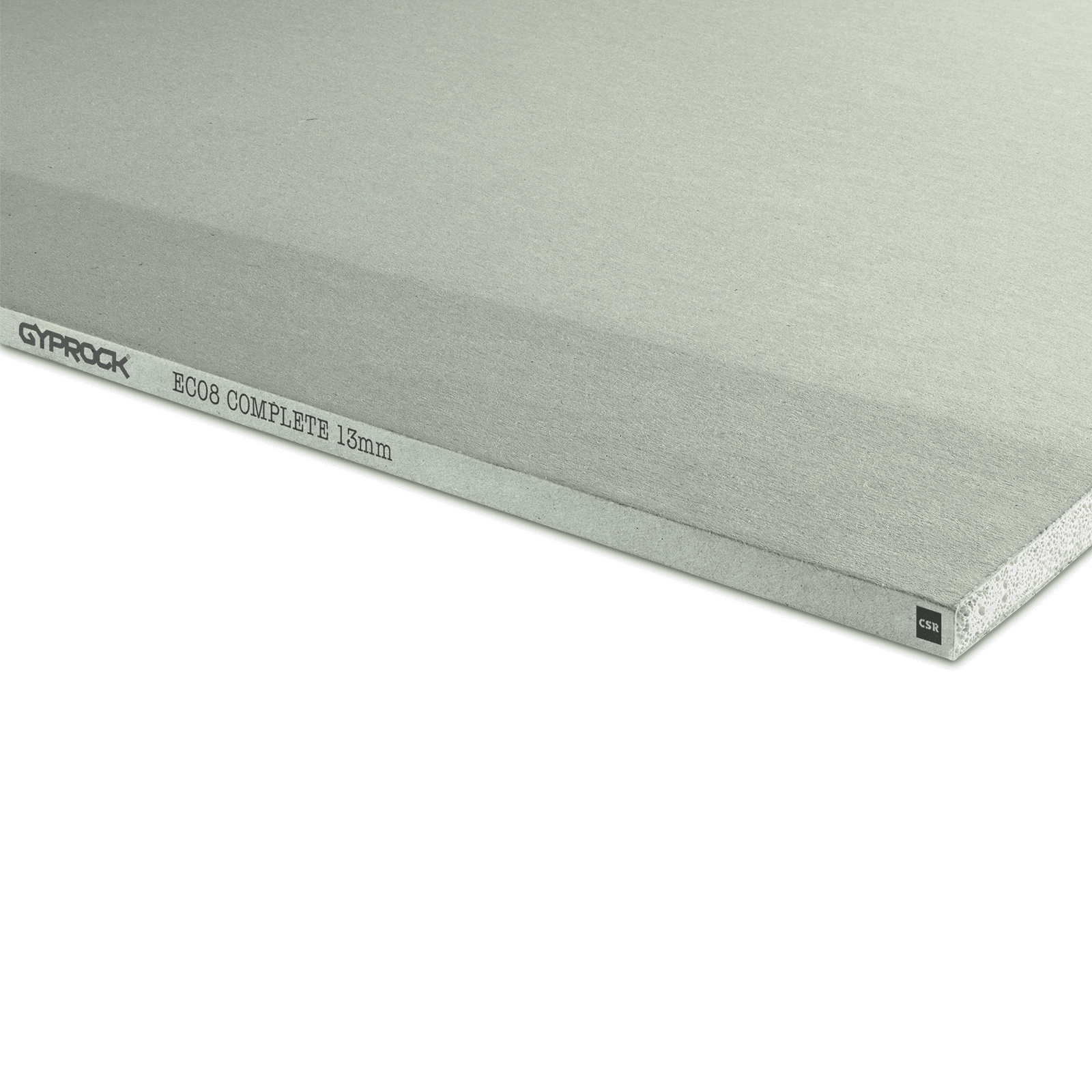

EC08 Complete is easily identified by its green coloured face paper.
Typical Applications

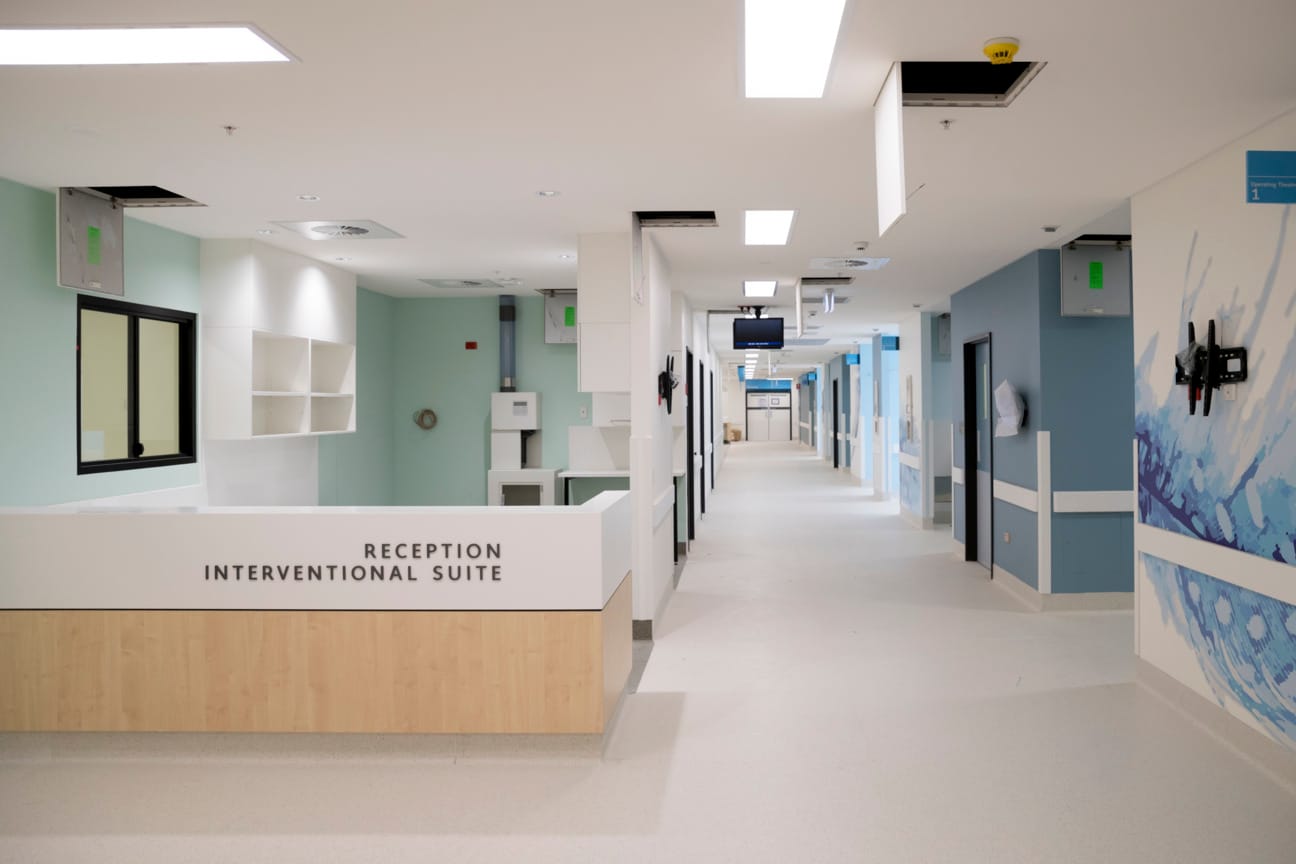

EC08 Complete is typically used as a wall and ceiling lining in commercial green building projects where a high level of impact, fire, moisture and mould resistance is required and high levels of recycled content are desired. This includes all green building projects and applications where maintaining high levels of indoor air quality is important such as schools, health and aged care.
Key Features
Australian Made
Licenced by Australian Made Campaign Ltd
Powerful Antifungal Agent
Resists mould and mildew
Impact Resistance
Reduces damage from hard and soft body impact
Moisture Resistance
Suitable for wet areas
High Recycled Content
Ideal for green building projects
Acoustic Properties
Helps combat sound transmission
Fire-rated
Can be used as part of a fire-rated system
Tested Impact Performance
Gyprock impact resistant plasterboard products are manufactured with a heavier lining paper, and special additives to enhance the durability of their core. Typically, these products can withstand twice the discernible force of regular plasterboard products, making them ideal for high traffic areas.
Hard body impact
Hard body impact is assessed by dropping a 50mm steel ball onto the plasterboard surface from increasing heights.
Soft body impact
Soft body impact testing sees a weighted bag swung on a pendulum, striking the plasterboard surface.
Technical Specifications
Gyprock EC08 Complete is available in the following sizes.
| Thickness | 13mm 16mm |
| Widths | 1200mm |
| Lengths | 3000mm 3600mm |
| Edge Profiles | Recessed Edge for regular jointing |
Stockholdings of specific sizes may vary in different regions. Click HERE for a list of stocked sizes in your state.
For the latest product availability in your area and to place an order, contact your nearest supplier.
Gyprock EC08 Complete is manufactured by CSR Gyprock in Australia to stringent product specifications.
| Nominal Thickness | 13mm and 16mm ± 0.5mm |
| Nominal Widths | 1200mm ± 3mm |
| Nominal Lengths | 3000mm and 3600mm ± 5mm |
| Squareness | Cut ends ± 3mm in the width of the board |
| 13mm | 16mm | |
| Nominal Board Weight* | 12.4kg/m2 | 14.8kg/m2 |
| Thermal Resistance | 0.05 - 0.07 m2K/W | 0.07 – 0.09 m2K/W |
| VOC level (as per GBCA limits) | 0.043 mg/m2/hr | |
| Fire Hazard Properties∆ | Group No = 1 SMOGRARC <100 m2/s2 | |
| Combustibility◊ | Plasterboard may be used wherever a non-combustible material is required. | |
| Total Recycled Content | 21.3% | 21.2% |
* Subject to reasonable manufacturing variance
∆ In accordance with AS ISO 9705 and AS 5637.1
◊ In accordance with NCC2022 Vol 1 Clause C2D10(6)(a) and NCC2019 Amdt1 Vol Clause C1.9(e)(i).
Transportation and manual handling: Refer to the Gypsum Board Manufacturers of Australia (GBMA) website for recommended OH&S practices.
Storage: Protect plasterboard and cornice from weather and moisture. Avoid products sagging by storing horizontally, supported on a level platform or full-width support members spaced at max. 600mm centres.
Safety Data Sheets are important documents in the construction industry and assist in the continuing focus on occupational health and safety on and off sites.
Installation Instructions
Install to manufacturer's recommendations as outlined in the relevant Installation Guide.
Performance Guaranteed
Licensed by Australian Made Campaign Limited to use the Australian Made Logo.
Gyprock plasterboard products are manufactured for life with all CSR products designed to achieve optimal performance when part of a CSR integrated system.
Verified by an independent conformity assessment body to meet the environmental, health and social/ethical criteria of the GECA Panel Boards standard.
