Gyprock Shaft Liner MP provides enhanced protection against mould growth for extra peace of mind during the early stages of construction.
Product Overview

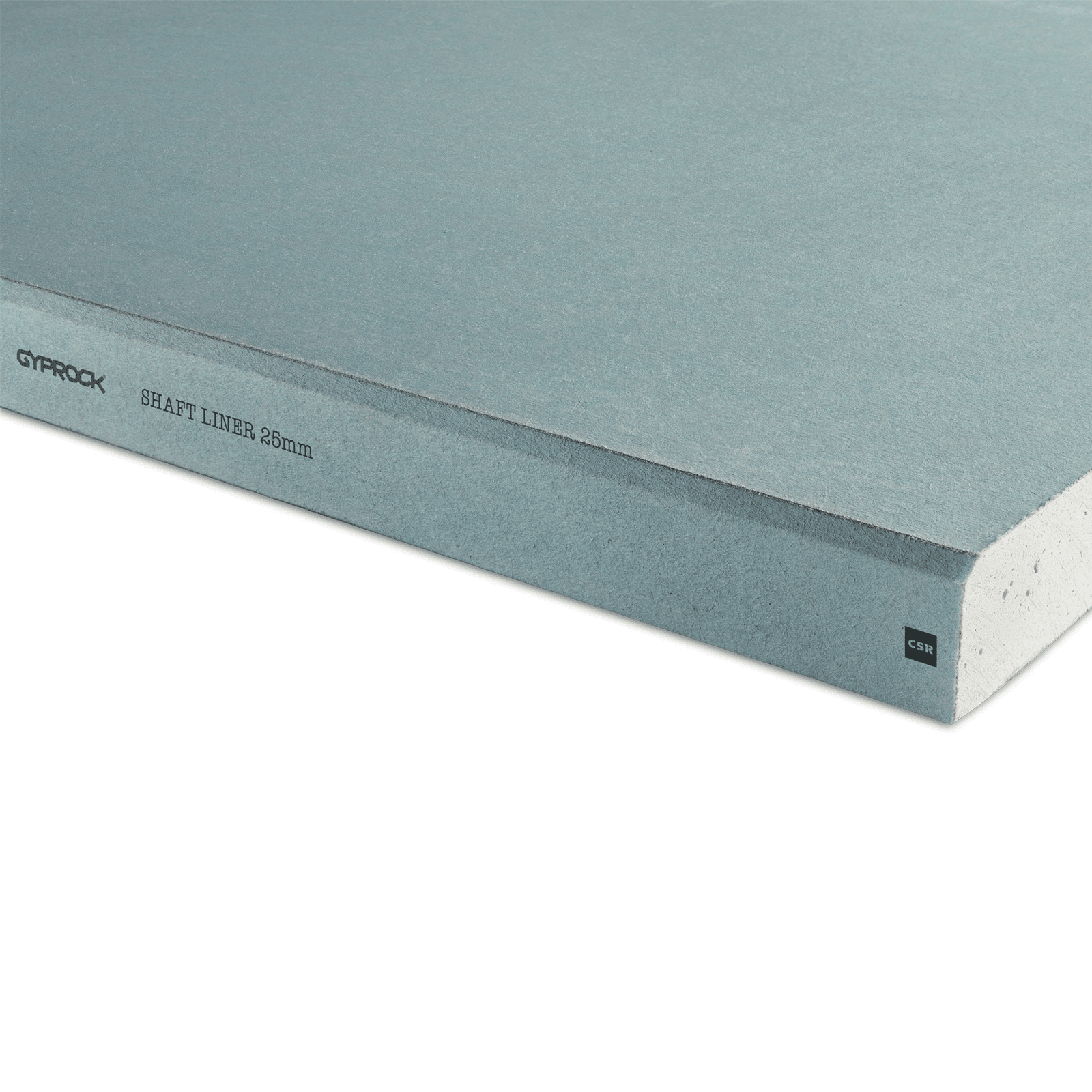

Shaft Liner MP, like standard Shaft Liner panel has a glass fibre-reinforced core encased in a heavy duty linerboard. This enables it to resist fire and make it ideal for use as part of a fire rated wall or ceiling system. These panels also offer exceptional acoustic insulation properties and are used in Gyprock commercial wall and ceiling systems where a high fire rating or high acoustic performance is specified. New Shaft Liner MP panel is manufactured with a powerful but gentle antifungal agent that permeates the plasterboard core, as well as the face and back paper of the board, providing enhanced protection against the possibility of mould growth during the early stages of construction. Gyprock Shaft Liner MP Panel can be identified by its blue coloured face paper.
Typical Applications
Shaft Liner MP is predominantly specified for the internal barrier lining within Gyprock fire and/or acoustic wall and ceiling systems such as Party Wall Systems.
Typical applications include:
- Intertenancy walls and party walls
- Multi-residential unit ceilings
- Stairwells

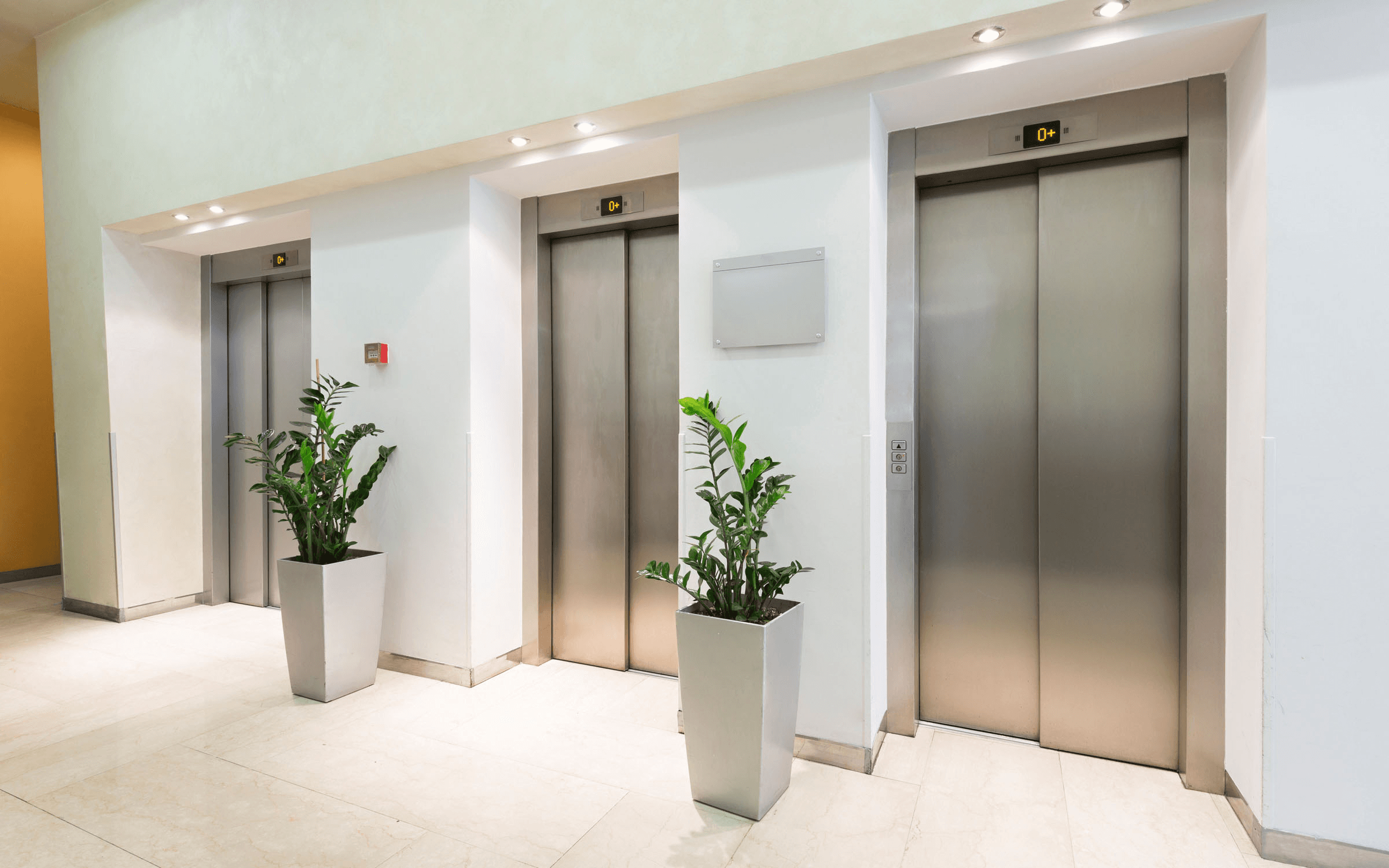

- Lift wells
- Service shafts
More information about fire solutions can be found under Solutions .
Key Features
Australian Made
Licensed by Australian Made Campaign Ltd
Powerful Antifungal Agent
Resists mould and mildew
Fire Resistance
Resists mould and mildew
Acoustic Properties
Helps combat sound transmission
Technical Specifications
Gyprock Shaft Liner MP is available in the following sizes:
| Thickness | 25mm |
| Widths | 600mm |
| Lengths | 3000mm 3600mm |
| Edge Profiles | Square Edge for applications not requiring jointing |
Stockholdings of specific sizes may vary in different regions. Click HERE for a list of stocked sizes in your state
For the latest product availability in your area and to place an order, contact your nearest supplier.
Gyprock Shaft Liner is manufactured by CSR Gyprock in Australia to stringent product specifications.
| Nominal Thickness | 25mm ± 0.5mm |
| Nominal Widths | 600mm ± 3mm |
| Nominal Lengths | From 3000mm and 3600 ± 5mm |
| Squareness | Cut ends ± 3mm in the width of the board |
| Nominal Board Weight* | 19.8kg/m2 |
| Thermal Resistance | 0.14 m2K/W |
| Fire Hazard Properties∆ | Group No = 1 SMOGRARC <100 m2/s2 |
| Combustibility◊ | Plasterboard may be used wherever a non-combustible material is required. |
| Total Recycled Content° | 9.3% |
* Subject to reasonable manufacturing variance
∆ In accordance with AS ISO 9705 and AS 5637.1
◊ In accordance with NCC2022 Vol 1 Clause C2D10(6)(a) and NCC2019 Amdt1 Vol Clause C1.9(e)(i).
° This plasterboard may require extra processing when recycling due to the presence of glass fibre mesh material.

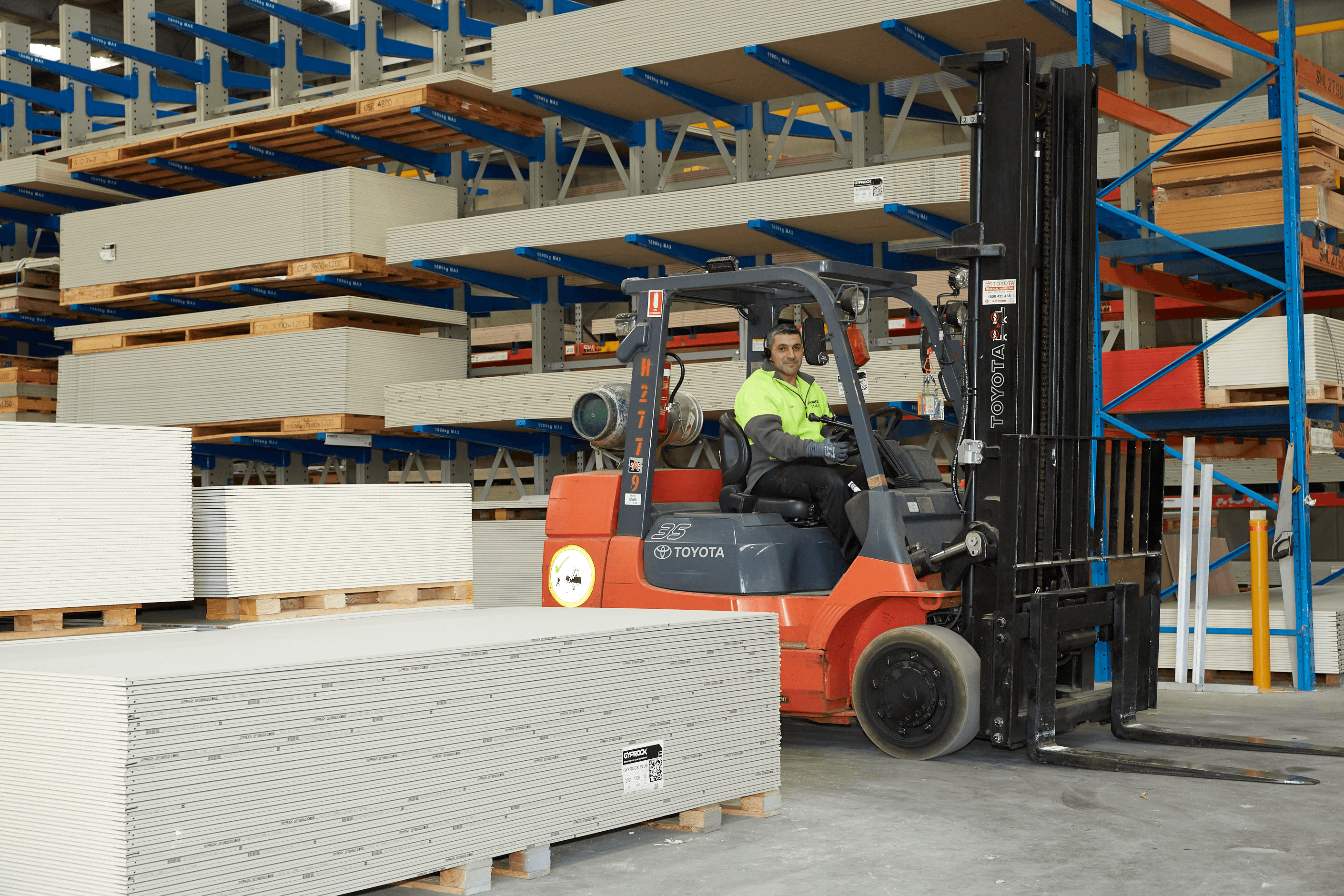

Transportation and manual handling: Refer to the Gypsum Board Manufacturers of Australia (GBMA) website for recommended OH&S practices.
Storage: Protect plasterboard and cornice from weather and moisture. Avoid products sagging by storing horizontally, supported on a level platform or full-width support members spaced at max. 600mm centres.
Safety Data Sheets are important documents in the construction industry and assist in the continuing focus on occupational health and safety on and off sites.
Installation Instructions
Install to manufacturer's recommendations as outlined in the relevant Installation Guide.
Performance Guaranteed
Licensed by Australian Made Campaign Limited to use the Australian Made Logo.
Gyprock plasterboard products are manufactured for life with all CSR products designed to achieve optimal performance when part of a CSR integrated system.
Verified by an independent conformity assessment body to meet the environmental, health and social/ethical criteria of the GECA Panel Boards standard.
