A quiet achiever, Gyprock Resilient Mount Clips reduce transfer of sound through wall and ceiling structures in acoustic wall and ceiling systems where a high level of noise reduction is required.
Product Overview
Noise, particularly low frequencies can transfer through solid structures. This means that sound can pass through the wall studs, floor and top plates into the next room.

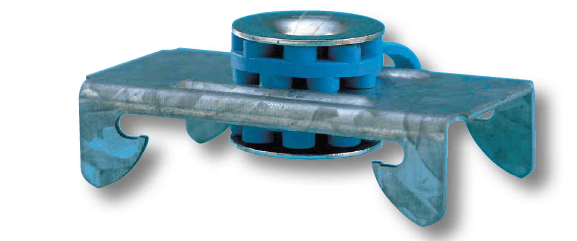

Gyprock Resilient Mounts are furring channel fixing clips with a fastener that is isolated by acrylic pads. These are affixed to the wall frame with furring channels attached and acoustic plasterboard is then mounted to the frame. An associated benefit of the use of Resilient Mounts is the air void created which also provides noise reduction.
Typical Applications
Gyprock Resilient Mounts are used in conjunction with Rondo steel sections for acoustic walls and soundproof rooms where a high level of noise reduction is required.
Key Features
Acoustics
Helps combat sound transmission

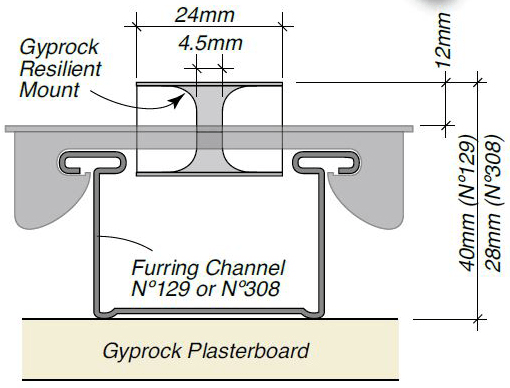

Resilient Mount Clip Dimensions
Furring channels No129 (40mm) or No308 (28mm) can be used
depending on individual installation requirements
Installation Instructions
AS/NZS2589: Gypsum linings – Application and Finishing outlines the procedures for the installation and finishing of Gyprock Perforated Plasterboard in conjunction with additional details contained in Gyprock Technical Literature.
Performance Guaranteed
Gyprock plasterboard products are manufactured for life with all CSR products designed to achieve optimal performance when part of a CSR integrated system.
