Impactchek™

Technical Specifications Installation Instructions

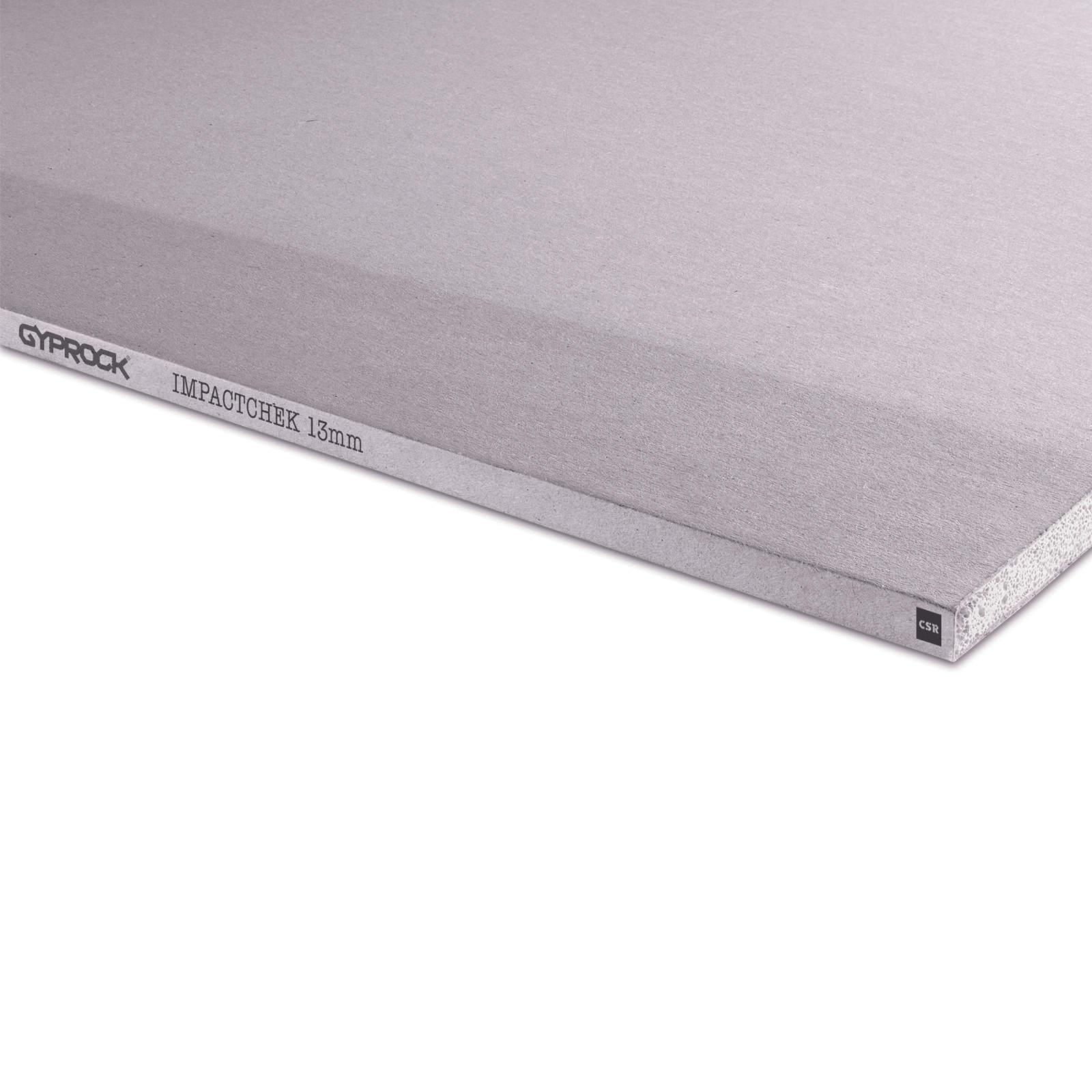

Bustling household or commercial environment? Gyprock Impactchek is a high-strength 13mm thick plasterboard with a reinforced core that is an ideal wall lining for high impact areas.

Product Overview

Impactchek is proven to effectively reduce the damage caused by soft and hard body impact. The layer of glass fibre mesh, denser core and heavy duty lining paper provide a hardier, scuff resistant plasterboard lining for residential and commercial applications.

This plasterboard is also a fire and acoustic grade board, ideal for high impact areas where acoustic separation or a fire rated system is specified.

Typical Applications:

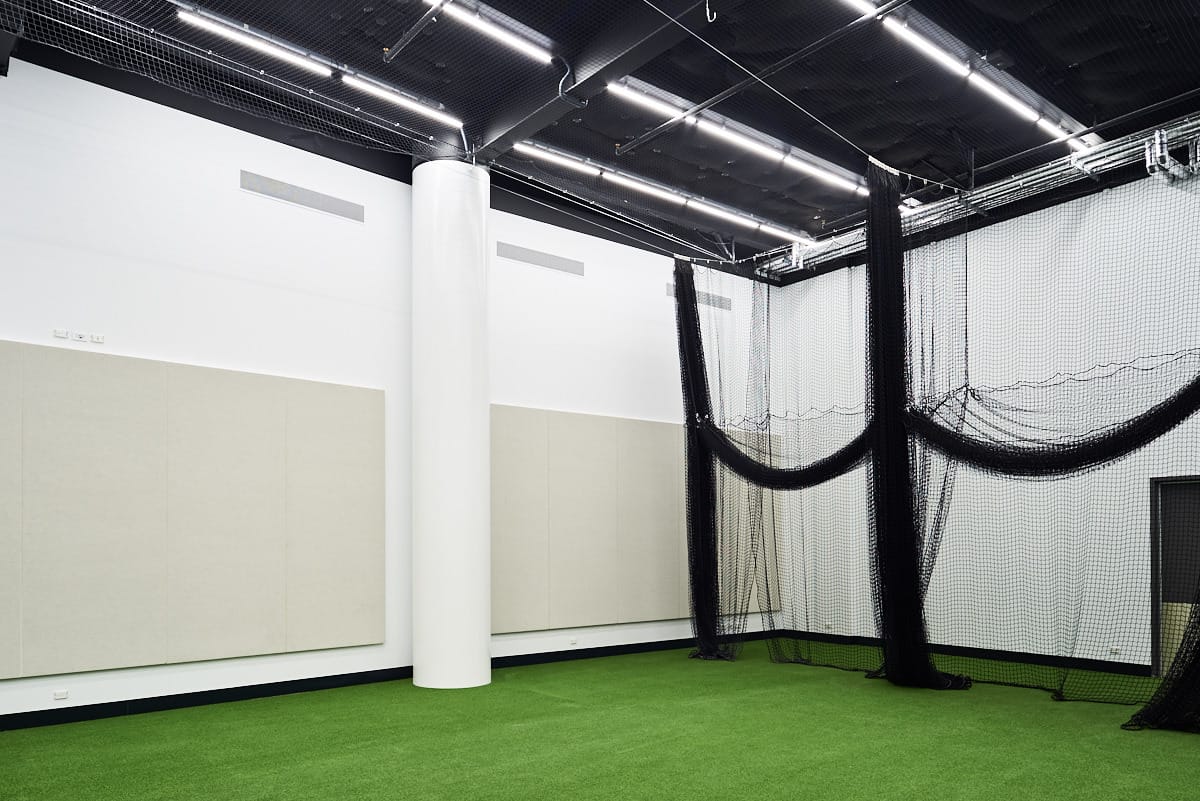

Impactchek is typically used in areas such as corridors, foyers, classrooms, retail walls, games rooms and garages where the risk of damage from soft body impact such as balls and bags and hard body impact such as trolleys and furniture is generally higher.
Gyprock™ Impactchek
Product Data Sheet Safety Data Sheet Find a Supplier
Australian Made and Owned logo in black and white

Australian Made and Owned

Licensed by Australian Made Campaign Ltd
impact resistant icon with shield and tick

Impact Resistant

Reduces damage from soft and hard body impact

acoustic performance icon with sound

Acoustic Properties

Helps combat sound transmission

fire rated icon with flame

Fire-rated

Can be used as part of a fire-rated system

Tested Impact Performance

Gyprock impact resistant plasterboard products are manufactured with a heavier lining paper, and special additives to enhance the durability of their core. Typically, these products can withstand twice the discernible force of regular plasterboard products, making them ideal for high traffic areas.

Hard body impact

Hard body impact is assessed by dropping a 50mm steel ball onto the plasterboard surface from increasing heights.

Soft body impact

Soft body impact testing sees a weighted bag swung on a pendulum, striking the plasterboard surface.

Impact Resistance

Technical Specifications

Product Options

Gyprock Impactchek is available in the following sizes:

Thickness 13mm
Widths 1200mm
Lengths 2400mm
2700mm
3000mm
3600mm
4200mm
4800mm
Edge Profiles Recessed Edge for regular jointing.

Stockholdings of specific sizes may vary in different regions. Click HERE for a list of stocked sizes in your state

For the latest product availability in your area and to place an order, contact your nearest supplier.

Product Manufacture

Gyprock Impactchek is manufactured by CSR Gyprock in Australia to stringent product specifications.

Product Handling

Transportation and manual handling: Refer to the Gypsum Board Manufacturers of Australia (GBMA) website for recommended OH&S practices.

Storage: Protect plasterboard and cornice from weather and moisture. Avoid products sagging by storing horizontally, supported on a level platform or full-width support members spaced at max. 600mm centres.

Health and Safety

Safety Data Sheets are important documents in the construction industry and assist in the continuing focus on occupational health and safety on and off sites.



Manufacturing Tolerances

Nominal Thickness 13mm ± 0.5mm
Nominal Widths 1200 ± 3mm
Nominal Lengths From 2400 to 4800 ± 5mm, typically in 300mm increments
Squareness Cut ends ± 3mm in the width of the board

Physical Properties

Nominal Board Weight* 10.5kg/m2
Thermal Resistance 0.05 – 0.07 m2K/W
Fire Hazard Properties∆ Group No = 1
SMOGRARC <100 m2/s2
Combustibility◊ Plasterboard may be used wherever a non-combustible material is required.
Total Recycled Content°
 10.4%

* Subject to reasonable manufacturing variance
∆ In accordance with AS ISO 9705 and AS 5637.1
◊ In accordance with NCC2022 Vol 1 Clause C2D10(6)(a) and NCC2019 Amdt1 Vol Clause C1.9(e)(i).
°This plasterboard may require extra processing when recycling due to the presence of glass fibre mesh material.

Installation Instructions

Resources

Gyprock makes available resources that provide comprehensive selection, design, installation and maintenance guidance.

Commercial Installation Guide

Design considerations and installation instructions.

Australian Made and Owned

Australian Made and Owned

Licensed by Australian Made Campaign Limited to use the Australian Made Logo.
Manufactured For Life red logo with the shape of Australia in the centre.

Manufactured for Life

Gyprock plasterboard products are manufactured for life with all CSR products designed to achieve optimal performance when part of a CSR integrated system.

GECA Accredited

Verified by an independent conformity assessment body to meet the environmental, health and social/ethical criteria of the GECA Panel Boards standard.

Certified Low VOC

Exceeds the GBCA specification for Volatile Organic Compound content according to independent testing.
