Achieve impressive acoustic control with Gyptone Slotted Minigrid. Combining a modern geometric pattern with a 13% open area, Gyptone Slotted Minigrid provides impressive levels of sound attenuation to match its good looks.
Product Overview
Manufactured by worldwide plasterboard specialist, Saint-Gobain, Gyptone is purpose built to provide exceptional acoustic control with contemporary design.
High levels of acoustic absorption are achieved through a combination of perforation patterns and a highly effective black acoustic fabric backing which also prevents dust from the ceiling entering the room and masks the ceiling framework.

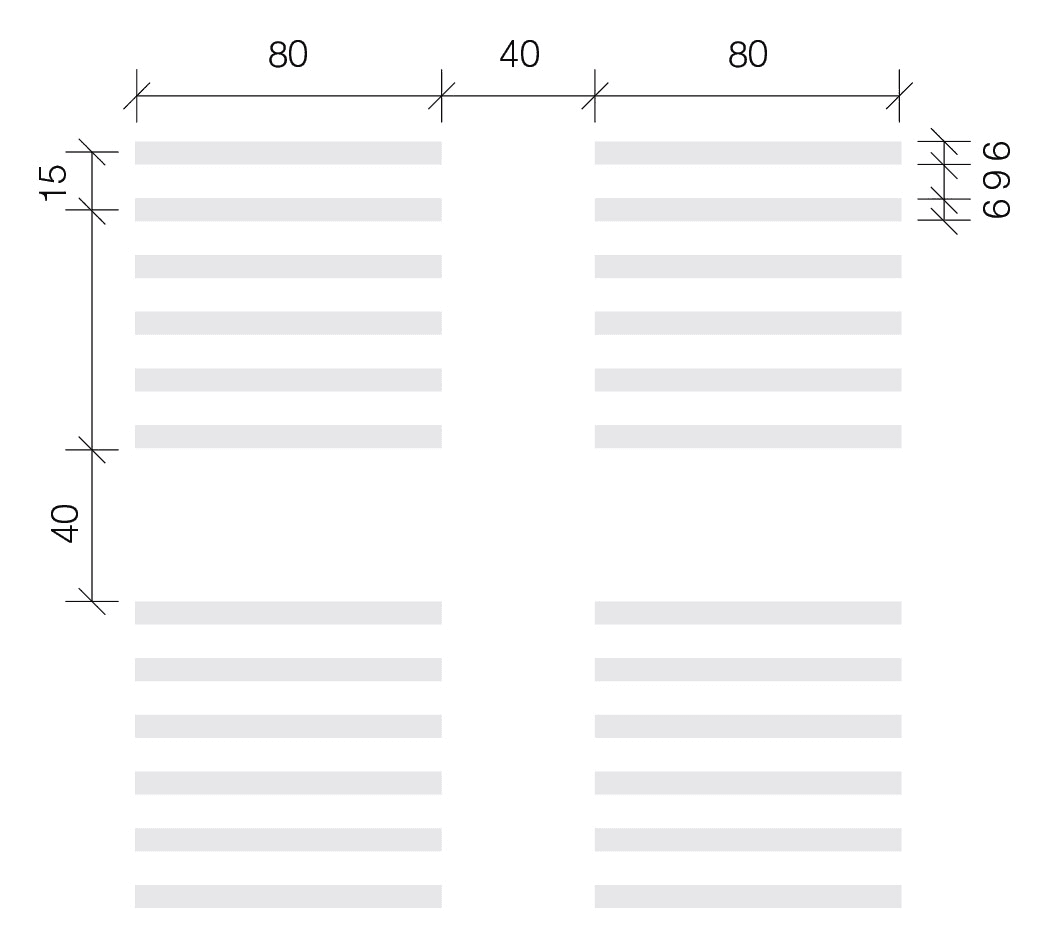

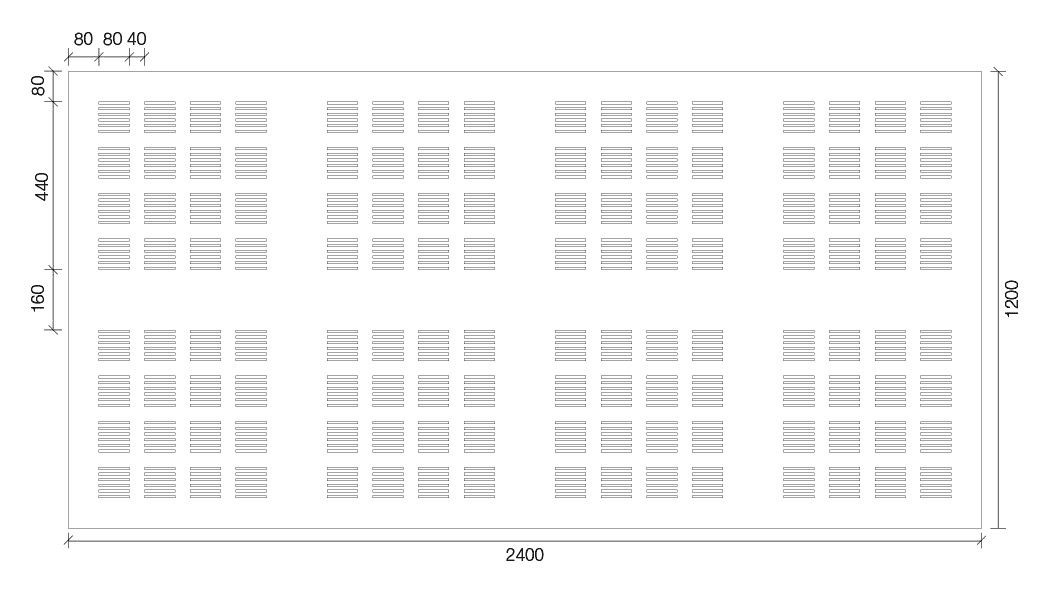

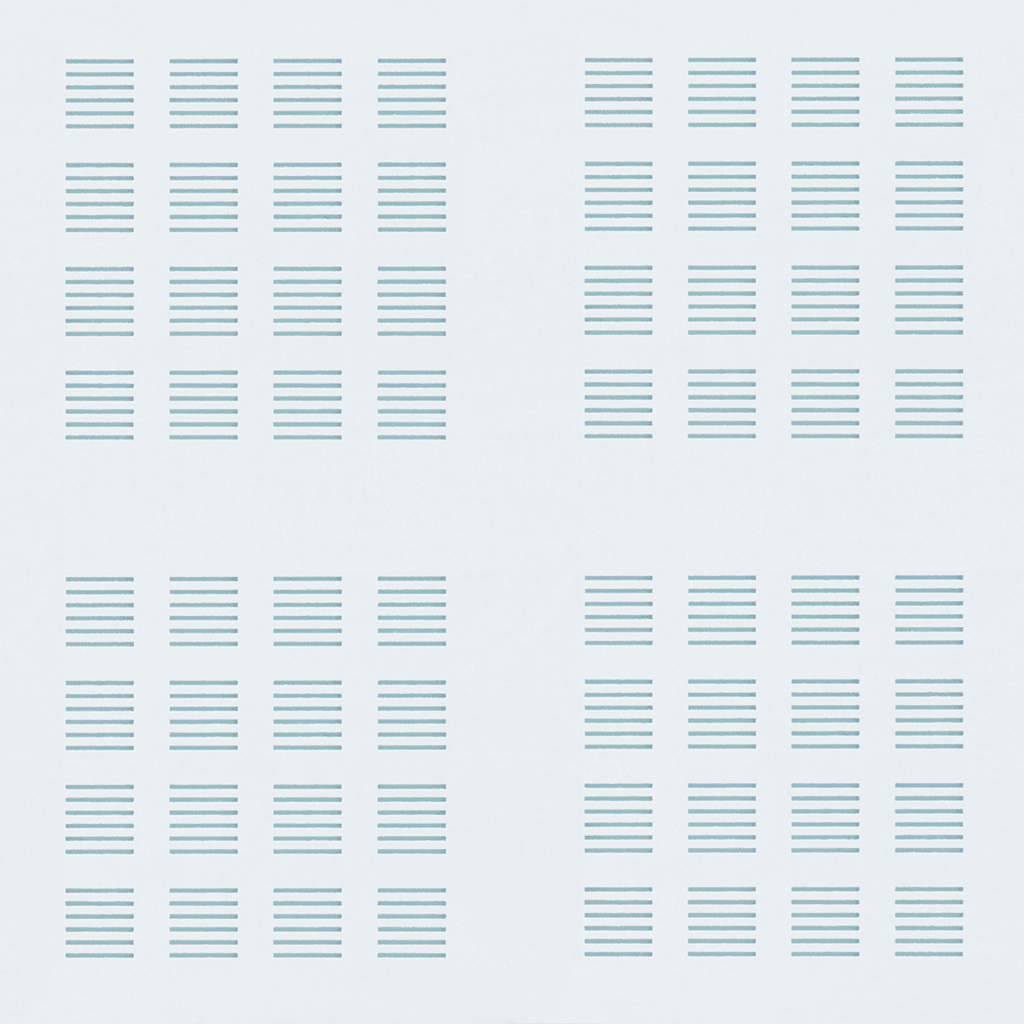

Gyptone Slotted Minigrid features eight large square groupings per sheet, each with 16 mini grids of six 6mm x 80mm slot perforations. This contemporary design provides 13% open area
Gyptone is also manufactured with Activ’Air technology which has an enduring impact on indoor air quality. All four edges of Gyptone perforated plasterboards are recessed to make flush jointing quicker and easier without the need for butt joints between full panels. The availability of seamless access panels, ensures easy access to the ceiling cavity while maintaining pattern continuity.
Loading component...
Key Features
Acoustics
Absorbs sound into the ceiling and walls to prevent reverberation
Aesthetics
Acoustic performance with design freedom
Healthy Environment
Activ'Air for enduring, cleaner air
Access Panels

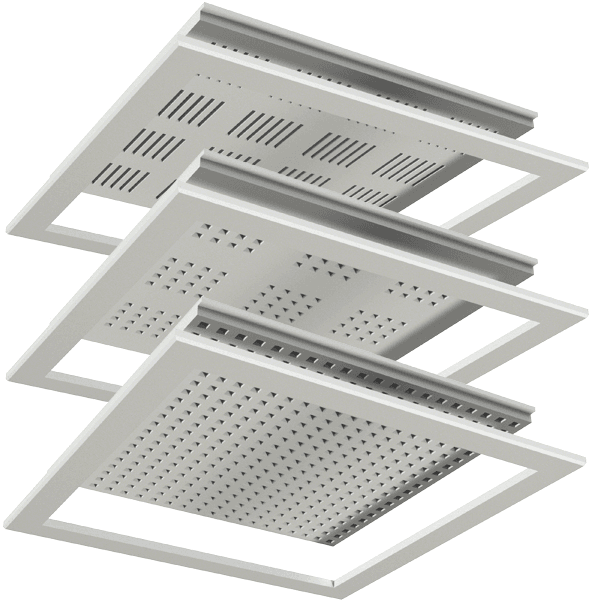

Gyptone Access Panels are integrated into suspended ceilings to allow for inspection, service and maintenance work on the installations in the space above. Gyprock offers an access panel solution for each pattern profile in the Gyptone range that provides easy access and integrates seamlessly into the ceiling.
Loading component...
Technical Specifications
Loading component...
Loading component...
Loading component...
Loading component...
Loading component...
Loading component...
Installation Instructions
AS/NZS2589: Gypsum linings – Application and Finishing outlines the procedures for the installation and finishing of Gyprock Perforated Plasterboard in conjunction with additional details contained in Gyprock Technical Literature.
