Superior acoustics and subtle style make Gyptone 12mm Square Minigrid an intelligent choice to help control reverberation in public spaces with the added benefit of enhanced air quality with patented Activ’Air technology.



Product Overview



Manufactured by worldwide plasterboard specialist, Saint-Gobain, Gyptone is purpose built to provide exceptional acoustic control with contemporary design.

High levels of acoustic absorption are achieved through a combination of perforation patterns and a highly effective black acoustic fabric backing which also prevents dust from the ceiling entering the room and masks the ceiling framework.

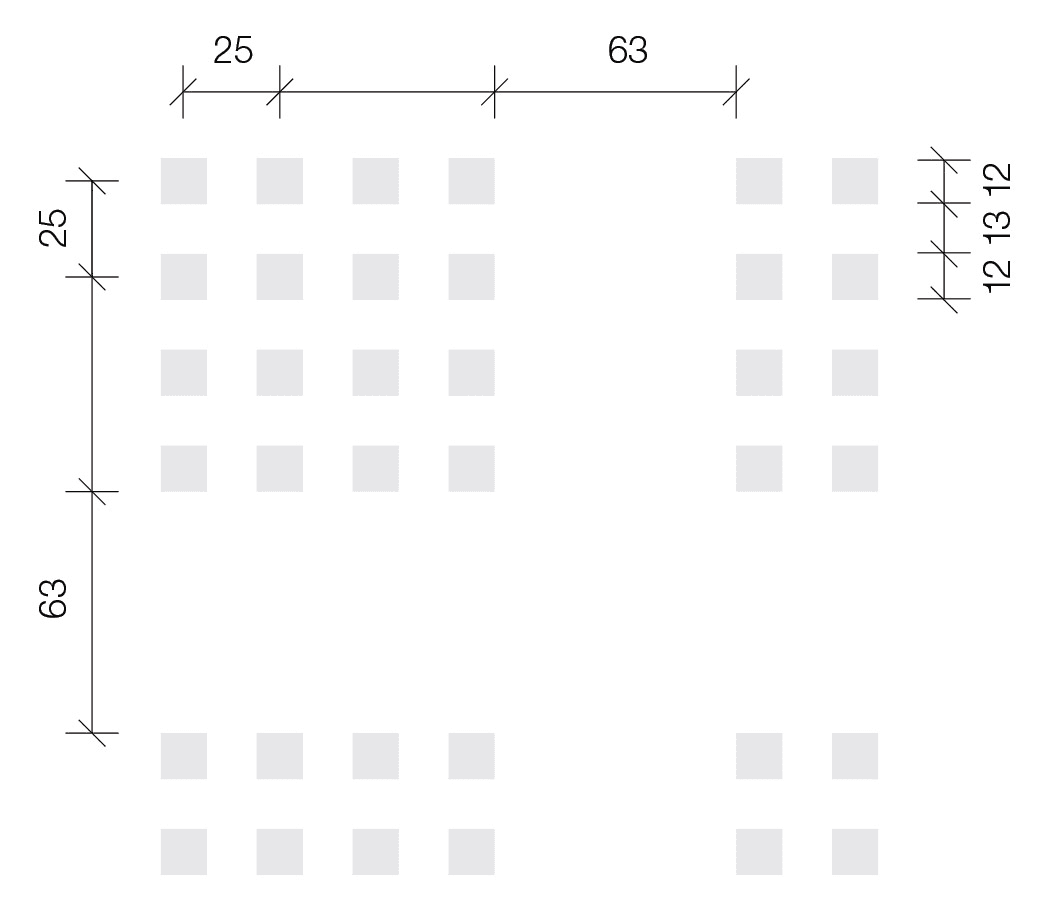

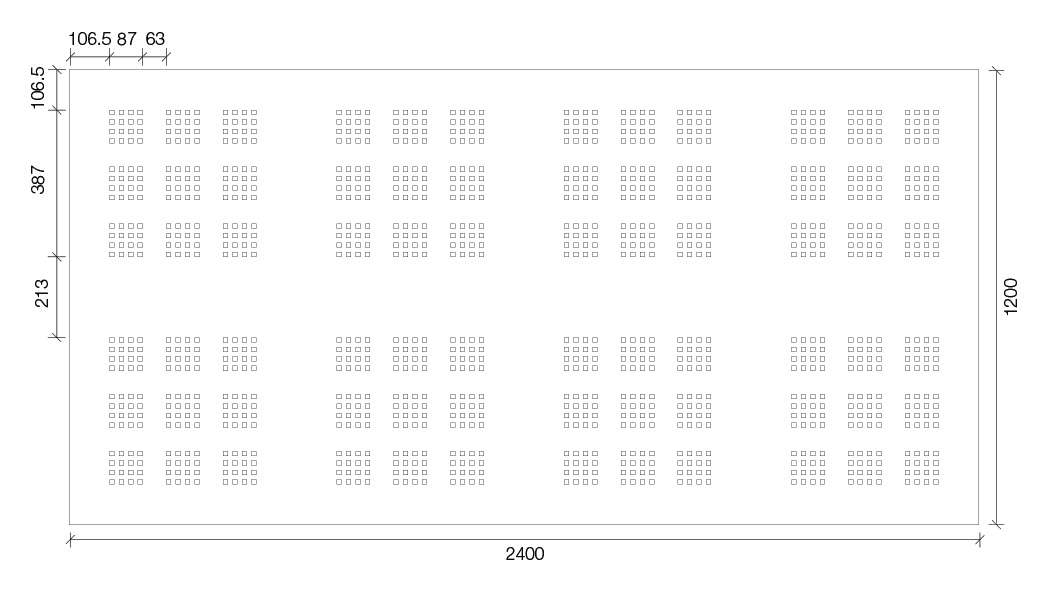

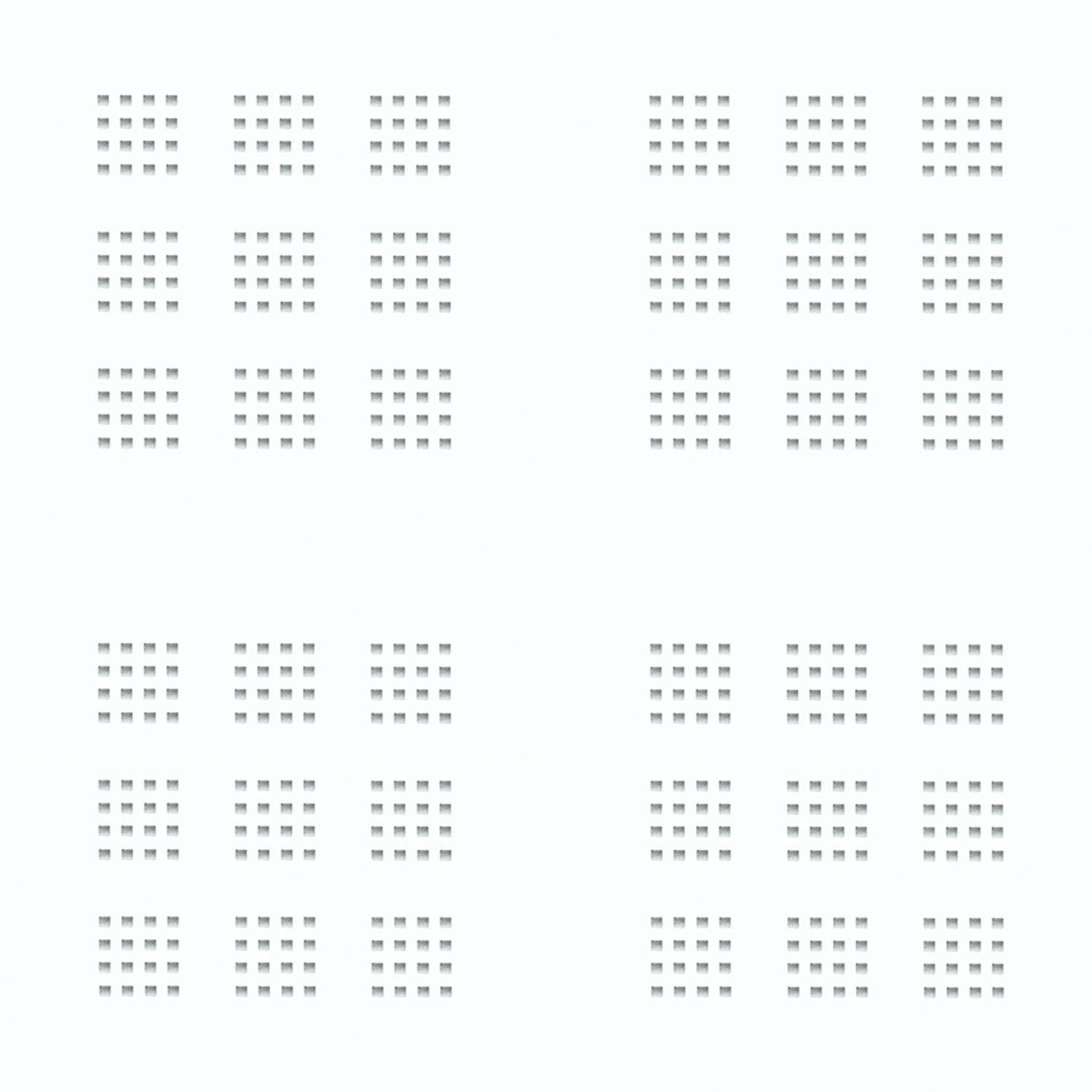

Gyptone 12mm Square Minigrid features eight large square groupings per sheet, each with nine mini grids of 16 x 12mm square perforations at 25mm centres. This subtle pattern provides an open area of 6%.

Gyptone is also manufactured with Activ’Air technology which has an enduring impact on indoor air quality.  All four edges of Gyptone perforated plasterboards are recessed to make flush jointing quicker and easier without the need for butt joints between full panels. The availability of seamless access panels, ensures easy access to the ceiling cavity while maintaining pattern continuity.

Loading component...

Key Features

Acoustics

Absorbs sound into the ceiling and walls to prevent reverberation

Aesthetics

Acoustic performance with design freedom

Healthy Environment

Activ'Air for enduring, cleaner air

Access Panels


Gyptone Access Panels are integrated into suspended ceilings to allow for inspection, service and maintenance work on the installations in the space above. Gyprock offers an access panel solution for each pattern profile in the Gyptone range that provides easy access and integrates seamlessly into the ceiling.

Loading component...

Technical Specifications

Loading component...

Loading component...

Loading component...

Loading component...

Loading component...

Loading component...

Installation Instructions

AS/NZS2589: Gypsum linings – Application and Finishing outlines the procedures for the installation and finishing of Gyprock Perforated Plasterboard in conjunction with additional details contained in Gyprock Technical Literature.

Loading component...

Loading component...

Loading component...

Performance Guaranteed
