On The Surface talks to the team at Perth Plaster Mouldings about the incredible elliptical skylight they created for Westfield Carousel Shopping Centre in Cannington, WA.
Led by Tom Pappas and Steve Koveski, Perth Plaster Mouldings is known for its high-quality workmanship and specialist restoration work. The company has walked away with trophies from a number of AWCI's Awards of Excellence, most recently taking out top honours in the Commercial Up To $500k category in last year's national awards for thier work on the Westfield Carousel Shopping Centre.

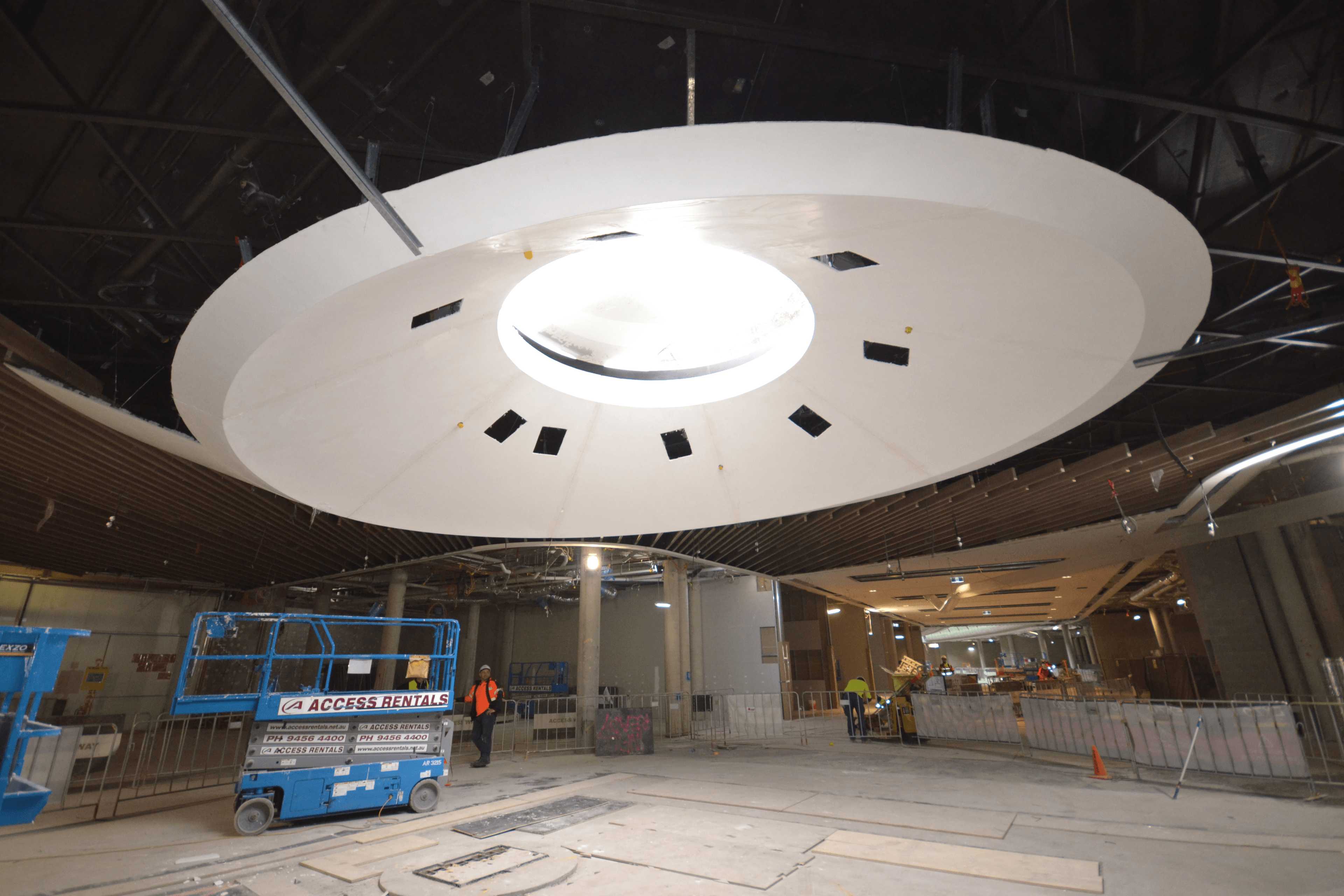

Tasked with creating an enormous elliptical skylight for Westfield Carousel, Perth Plaster Mouldings was excited to be building a full-size model for the first time ever.
"We would normally just make a section of a model and then repeat castings" Steve explains.

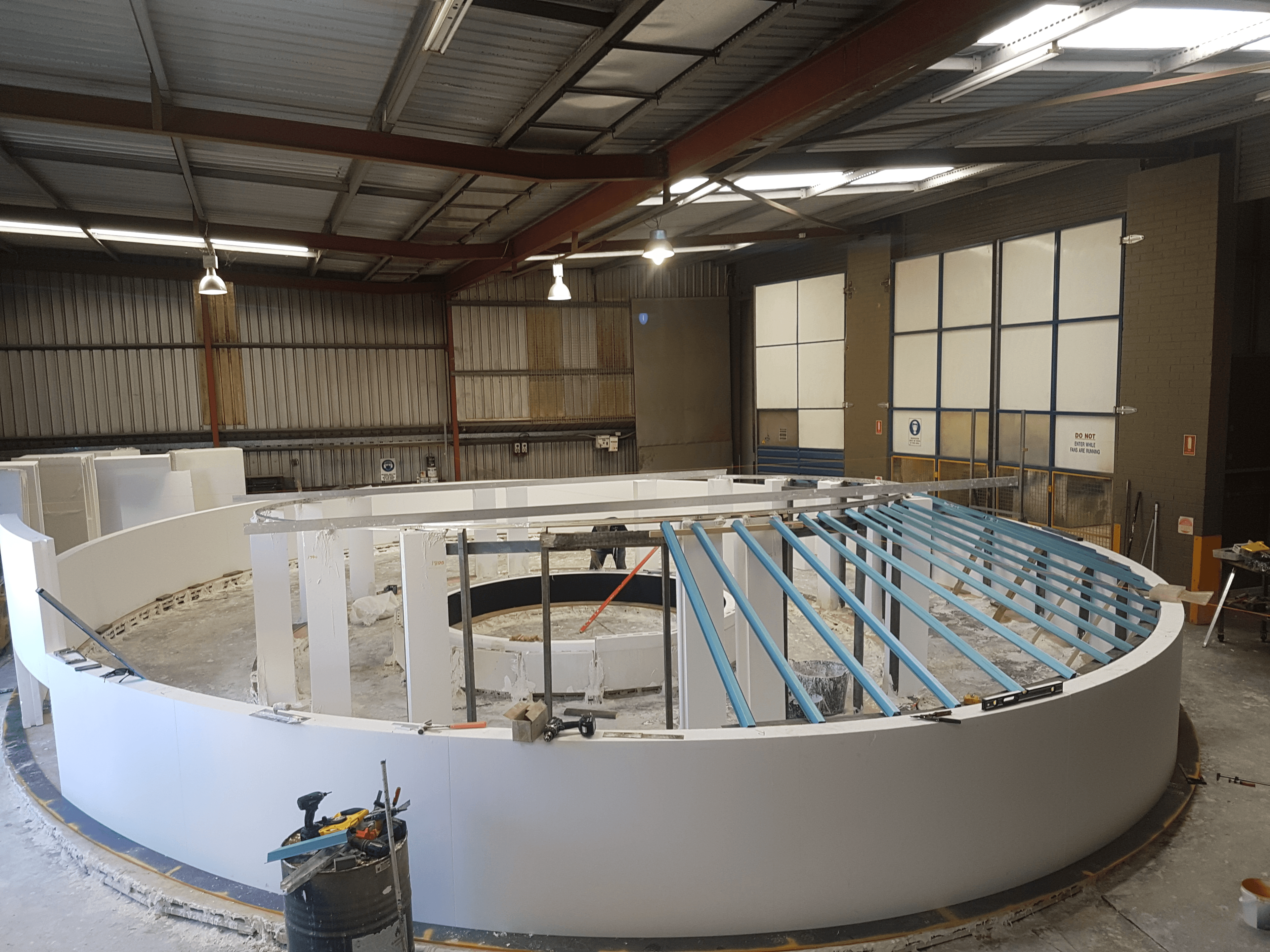

"The full size of the ellipse was 15m longs and 11.5m wide. To complete the job, we first had to find a workshop that would accommodate the size of the dome and allow us to space to work around it"
In this article
Indeed, there were a number of challenges the team had to overcome in order to create a larger-than-life skylight.
"In preparing to complete the dome, the first task was the make the floor level, which we achieved by using plaster building blocks", Tom says.
"The main challenge, and one of the most critical components of the job, was to make sure all three axis points looked perfect. This was extremely difficult as the dome was designed to be on a tilt"
"We achieved this by casting aluminium flat bar into the model at the required heights. This ensured that we would then have a flowing ellipse. This information then allowed us to screed the whole dome using these three points. Once all the screeding was completed, the dome was sealed and 38 moulds were taken from it. From the moulds we then cast the finished product."
As with all their jobs, Tom and Steve utilised CSR casting plaster for the highest quality finish.
"This allows our cast to be lightweight while still maintaining high strength," Steve explains.
"We also use CSR cornice cement to adhere our products to walls and ceilings, and CSR casting plaster for grouting"
"Rondo clips, top cross rail and PGI angle was used throughout all the casting and also used in the installation of the products. We use Rondo's suspension system as it's a reliable product and complies with Australian Standards"
