With a 19.8% open area Rigitone Matrix 8mm Square combines exceptional acoustic performance with modern monolithic design thanks to it’s edge-to-edge perforation layout and unique installation method.

Product Overview

Manufactured by worldwide plasterboard specialist, Saint-Gobain, Rigitone is purpose built to provide exceptional acoustic control with ultimate design freedom. High levels of acoustic absorption are achieved through a combination of perforation patterns and a highly effective black acoustic fabric backing which also prevents dust from the ceiling entering the room and masks the ceiling framework.

Rigitone Matrix 8mm Square features a pattern of 8mm square perforations spaced at 18mm centres, providing a 19.8% open area.

Rigitone is also manufactured with Activ’Air technology which has an enduring impact on indoor air quality. The edges of Rigitone boards are square cut and pre-primed for a unique installation method using ready-mixed Rigitone Filler, creating a continuous, seamless finish. The availability of seamless access panels, ensures easy access to the ceiling cavity while maintaining pattern continuity.

Typical Applications:

Rigitone perforated plasterboard is typically used as a high performance plasterboard for ceilings in commercial constructions where a high level of acoustic performance is required. This includes applications such as theatres, restaurants, shopping centres and hotel foyers. Whilst perforated plasterboard in predominantly installed in ceilings, it is suitable for use in walls.

The unique installation method allows the product’s perforated pattern to continue uninterrupted, achieved using a specialised compound, accessory kit and primer prior, readying the surface for sanding and painting.

Rigitone Matrix 8mm Square
acoustic performance icon with sound

Acoustics

Absorbs sound into the ceiling to prevent reverberation

environmentally responsible icon with leaves

Healthy Environment

Activ'Air for enduring, cleaner air

aesthetics icon with typo a

Aesthetics

Acoustic performance with design freedom

Technical Specifications

NRC Value Summary

Perforated Pattern Open Area % Acoustic Fabric Plenum (Air Cavity)
65mm 200mm 600mm
Empty Batts** Empty Batts** Empty Batts**
Matrix 8mm Square 19.8% Black 0.60 0.70 0.65 0.80 0.70 0.80

Bold values in all tables are test report data. Non-bold values are acoustic predictions by PKA Acoustic Consulting. Values are for ceilings only. For wall values please contact DesignLINK. **Batts denotes that 50mm Bradford glasswool batts (14kg/m3) were included in the cavity.

Product Options

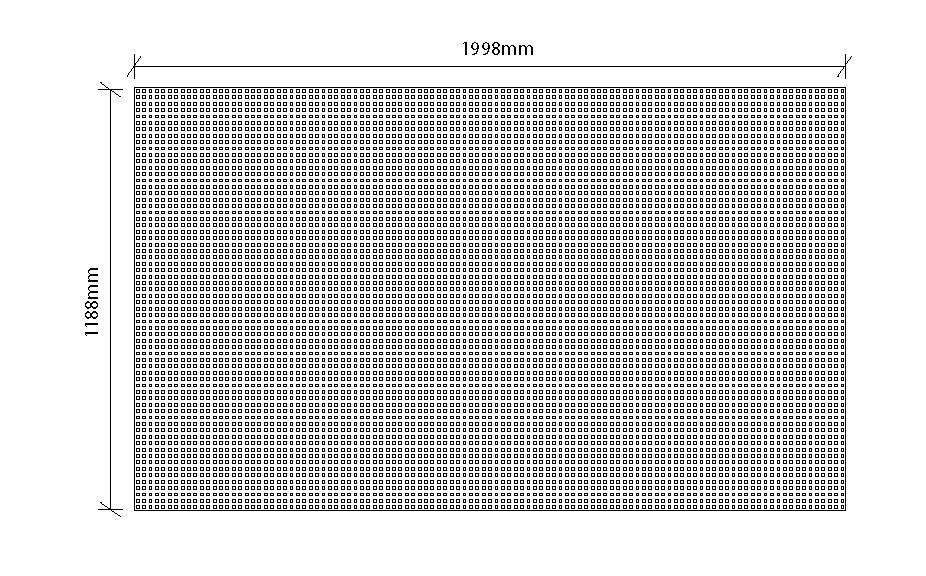

Rigitone Matrix 8mm Square is available in the following size:

Thickness 12.5mm
Widths 1188mm
Lengths 1998mm

Stockholdings of specific sizes may vary in different regions. For the latest product availability in your area and to place an order, contact your nearest supplier.

Product Manufacture

Rigitone Matrix 8mm Square is manufactured for CSR Gyprock by worldwide plasterboard specialist Saint-Gobain.

Product Handling

Transportation and manual handling: Refer to the Gypsum Board Manufacturers of Australia (GBMA) website for recommended OH&S practices.

Storage: Protect plasterboard and cornice from weather and moisture. Avoid products sagging by storing horizontally, supported on a level platform or full-width support members spaced at max. 600mm centres.

Health and Safety

Safety Data Sheets are important documents in the construction industry and assist in the continuing focus on occupational health and safety on and off sites.




Manufacturing Tolerances

Nominal Thickness 12.5mm ± 0.3mm
Nominal Widths 1188 ± 3mm
Nominal Lengths 1998 ± 3mm
Squareness 90° ± 1.5mm at 1200mm (short end)

Physical Properties

Nominal Board Weight* 10kg/m2
Fire Hazard Properties∆
Group No = 1
SMOGRARC <100 m2/s2
Combustibility◊ Plasterboard may be used wherever a non-combustible material is required.

* Subject to reasonable manufacturing variance
∆ In accordance with AS ISO 9705 and AS 5637.1
◊ In accordance with NCC2022 Vol 1 Clause C2D10(6)(a) and NCC2019 Amdt1 Vol Clause C1.9(e)(i).

Installation Instructions

Installing to Standards

AS/NZS2589: Gypsum linings – Application and Finishing outlines the procedures for the installation and finishing of Gyprock Perforated Plasterboard in conjunction with additional details contained in Gyprock Technical Literature.

Resources

Gyprock makes available resources that provide comprehensive selection, design, installation and maintenance guidance.

Rigitone Perforated Plasterboard Installation Thumbnail

Installation Video

Installing Rigitone™ Perforated Plasterboard

International Alliance Warranty

Through the International Alliance program, Gyprock seeks to develop exclusive relationships with leading manufacturers throughout the world to deliver the best technologies and products to the Australian construction industry.

Certified Low VOC

Exceeds the GBCA specification for Volatile Organic Compound content according to independent testing.
